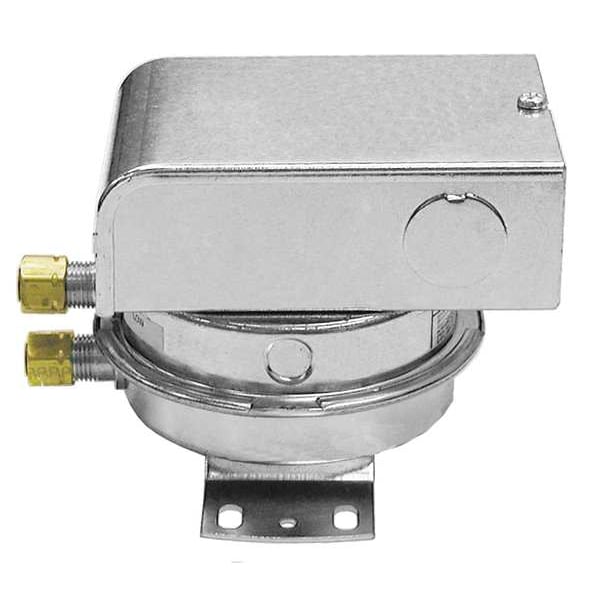

Robertshaw Pressure Sensing Switch, SPDT 2374-508 - main

Pressure Sensing Switch, SPDT

  • Mfr # 2374-508

  • Zoro # G0938445

product price: $55.89
/ea

Key Features

Mounting Location
Vertical
Agency Compliance
CSA Certified, UL listed
Operating Temp. Range (F)
-40 to 180
Includes
Adjustment Tool, Mounting Hardware
Switch Type
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2374-508
Zoro #
G0938445
UPC #
-
Country of Origin
Mexico

Dimensions

Height (In.)
4 3/32 in
Depth (In.)
3 in
Width (In.)
4 5/8 in
Overall Width
4 5/8 in
Overall Height
4 1/8 in
Sample Line Connection Size
1/8 in, 1/4 in, 3/8 in
Overall Depth
3 in

Details

Mounting Location
Vertical
Agency Compliance
CSA Certified, UL listed
Operating Temp. Range (F)
-40 to 180
Item
Air Pressure Switch
Includes
Adjustment Tool, Mounting Hardware
Switch Type
SPDT
Application
Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC
Differential (In. WC)
+/-0.02
Sample Line Connector
Integral Compression
Type
HVAC/General Purpose
Features
Housing Has an Enclosure Cover
Function
Sense Positive, Negative or Differential Air Pressure
Mounting Holes O.C. (In.)
3 3/4 in
Pressure Setting Range (In. WC)
0.15 +/-, 0.02 to 5.0
Electrical Rating
1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC
Maximum Pressure Rating
0.5 psi
Contact Form
SPDT
Pressure Type
Differential, Negative, Positive
Mounting Hole Center to Center Distance
3 3/4 in
Electrical Connection Type
Screw Terminals
Sample Line Connector Type
Integral Compression
Housing Material
Stainless Steel
Number of Switches
1
Input Voltage
120V AC, 277V AC, 28V DC
Maximum Operating Temperature
190 Degrees F
Housing Type
Conduit Box
Pressure Setpoint Type
Adjustable
Minimum Pressure Setting
0.02 in wc
Product Type
Air Pressure Switch
Mounting Orientation
Vertical
Standards
CSA Certified LR18754, UL Listed MH6213
Maximum Differential Pressure Setting
0.15 in wc
Reset Type
Automatic Reset
Maximum Pressure Setting
0.5 in wc
Minimum Operating Temperature
-40 Degrees F

Description

Air Pressure Switch, Application Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC, Housing Material Stainless Steel, Housing Type Conduit Box, Includes Adjustment Tool, Mounting Hardware, Input Voltage 120V AC, 277V AC, 28V DC, Maximum Differential Pressure Setting 0.15 in wc
