  9. Pressure Switch, .05-12.0

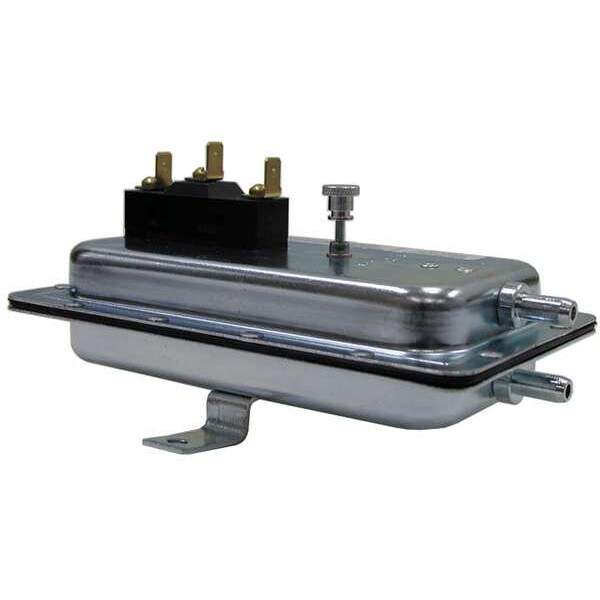

Robertshaw Pressure Switch, .05-12.0 2374-502 - main

Pressure Switch, .05-12.0

  • Mfr # 2374-502

  • Zoro # G2987826

product price: $43.99
/ea

Key Features

Switch Type
SPDT
Type
HVAC/General Purpose
Includes
Adjustment Tool, Mounting Hardware
Depth (In.)
2 7/8 in
Differential (In. WC)
0.02 to 0.8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2374-502
Zoro #
G2987826
UPC #
094714370580
Country of Origin
Mexico

Dimensions

Depth (In.)
2 7/8 in
Width (In.)
3 1/4 in
Height (In.)
5 13/16 in
Sample Line Connection Size
1/8 in, 1/4 in, 3/8 in
Overall Depth
2 7/8 in
Overall Width
3 1/4 in
Overall Height
5 13/16 in

Details

Switch Type
SPDT
Type
HVAC/General Purpose
Includes
Adjustment Tool, Mounting Hardware
Differential (In. WC)
0.02 to 0.8
Electrical Rating
1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC
Sample Line Connector
1/4 in Slip-On
Application
Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC
Mounting Holes O.C. (In.)
3 7/8 in
Operating Temp. Range (F)
-40 to 180
Features
Field Adjustable, Hose Barbs For 1/4 in OD Hose Attachment
Function
Sense Positive, Negative or Differential Air Pressure
Item
Air Pressure Switch
Agency Compliance
CSA Certified, UL listed
Pressure Setting Range (In. WC)
0.05 to 12.0
Mounting Location
Vertical
Pressure Type
Differential, Negative, Positive
Standards
CSA Certified LR18754, UL Listed MH6213
Number of Switches
1
Housing Material
Stainless Steel
Sample Line Connector Type
Push-On
Maximum Pressure Setting
12 in wc
Input Voltage
120V AC, 277V AC, 28V DC
Minimum Differential Pressure Setting
0.02 in wc
Pressure Setpoint Type
Adjustable
Reset Type
Automatic Reset
Minimum Operating Temperature
-40 Degrees F
Minimum Pressure Setting
0.05 in wc
Housing Type
Conduit Box
Electrical Connection Type
Screw Terminals
Maximum Operating Temperature
190 Degrees F
Contact Form
SPDT
Mounting Hole Center to Center Distance
3 7/8 in
Maximum Differential Pressure Setting
0.8 in wc
Product Type
Air Pressure Switch
Mounting Orientation
Vertical
Maximum Pressure Rating
0.5 psi

Description

Air Pressure Switch, Application Air Filtration, Furnace Control, Humidity Detection and Control, Commercial HVAC, Residential HVAC, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 1 A Pilot Duty @ 120 VA, 5 A @ 120 to 277V AC, 5 A @ 28V DC, Housing Material Stainless Steel, Housing Type Conduit Box, Includes Adjustment Tool, Mounting Hardware, Input Voltage 120V AC, 277V AC, 28V DC, Maximum Differential Pressure Setting 0.8 in wc
