Robertshaw

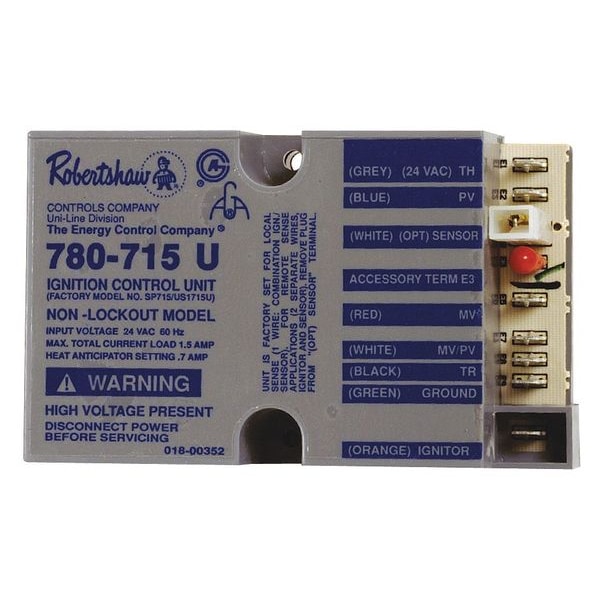

Spark Ignition Control, Nonlockout

product price: $120.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 24
  • Pressure Setting Range (In. WC) 3.5
  • Width (In.) 4 3/4 in
  • Retries Continuous
  • Control Volts 24 V AC
See all product information

Product Information

Dimensions

Width (In.) 4 3/4 in
Height (In.) 3 in
Depth (In.) 1 1/2 in
Overall Depth 1 1/2 in
Overall Width 4 3/4 in
Overall Height 3 in

Details

Item Ignition Control
Voltage 24
Pressure Setting Range (In. WC) 3.5
Retries Continuous
Control Volts 24 V AC
Gas Type NG/LP
Electrical Connections Terminals
For Use With 7000 BDER, 7100 DER and 7200IPER Gas Valves
Amps AC 1.5 A
Type Spark Ignition, Nonlockout
Electrical Ratings Combined Load 1.5 at .4 PF, Flame Sensor Current .7 mA DC @ 25C / 24V AC, Main valve 1 amp at .5 PF, Pilot valve 1 amp at .5 PF
Product Type Ignition Control
Number of Retries 3
OEM Replacement Part Number 00018-03930, 0384-015, 05-02-00244, 100-00801-01, 100-00808-01, 100-00808-02, 100-00808-03, 100-00808-06, 100-00808-11, 100-00821-01, 100-00821-02, 100-801-01, 100-808-01, 100-808-02, 100-808-03, 100-808-06, 100-808-11, 100-821-01, 100-821-02, 1100-225, 13130417-01, 150140-05-01, 1501402601, 1781901, 1803931, 28, 2874, 32028, 32043, 35736-00, 36524B001, 36524B001S, 4E398, 50D50-843, 511330231, 57P40, 5H71913B, 600963, 62-21747-01, 62-21747-02, 63534, 661401, 780-715U, 780-71E, 78070, 8900-657H, 92406, B1370720, E087105, H350IGN, H8900657H, L37-297, P28740, RLY1010, S03-00403, S8610A1009, S8610F1008, S8610F1016, SP715, SP715A, SP715U, SP715Z, USI 715U, WG37X0023
Ignition Cycle Time 90 seconds
Compatible with Series Universal
Flame Sensor Current Output 0.7 mA
Frequency 50/60 Hz
Series 780
Main Valve Current Output 1.5 A
Input Voltage 24V AC
Compatible with Brand A.O. Smith, A.R.A. Mfg. Co., Alko Scientific, Amana, American Burner Corp, American Instrument, Balyon, Barbeque King, Barkow, Bernz-O-Matic, Blanchard-Ness, C.E.T. / France, Carter Hoffman, Cary, Cecilware/Commodore, Cleaver Brooks, Cleveland Controls, Climate Control, Controls Of America, Corox, Craig Systems, Fawn Engineering, Fedders, Honeywell, Howard, Hummer, Hunter, Hupp Typhoon A/C, Indeeco, Inland Manufacturing, Intercole Automation, International Carbon, International Frezze, International Oil, Johnson Gas Appliance, Johnstone Supply, Juliette, Keronite, Kruger, Lab Equipment, Larco, Larkin Coils, Lennox, Lern, Liquid Carbonic, Robertshaw, The Hotsy Company, Uni-Line, Westward, White-Rodgers
Minimum Operating Temperature -40 Degrees F
Pre-Purge Time 6 min
Control Voltage 24V AC
Replacement Type Universal
Maximum Operating Temperature 175 Degrees F
Electrical Connection Type Screw Terminals
For Fuel Type LP, Natural Gas
Thermostat Anticipator Setting Thermostat Anticipator

Description

Ignition Control, Product Type Ignition Control, Maximum Operating Temperature 175 Degrees F, Minimum Operating Temperature -40 Degrees F, Lock Out Time Not Applicable, Pre-Purge Time 6 min, Number of Retries 3, Main Valve Current Output 1.5 A, Flame Sensor Current Output 0.7 mA, Ignition Cycle Time 90 seconds, Automatic Reset Time Not Applicable, Compatible with Series Universal
