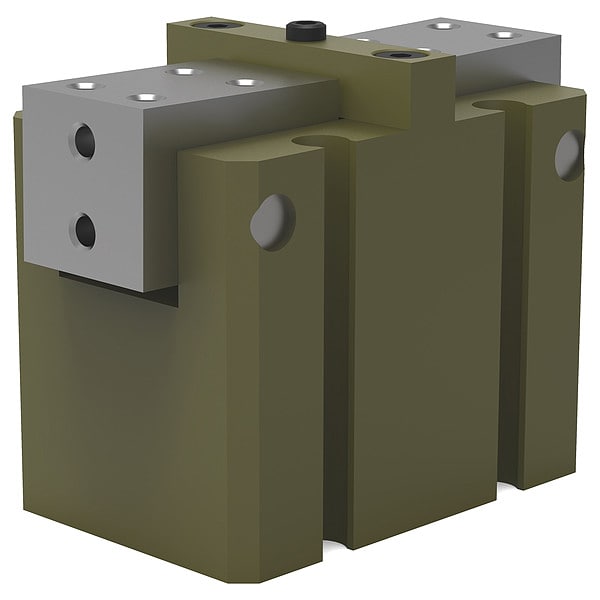

Angular Gripper
Mfr # RA-5M
Zoro # G1156891
product price: $487.99
/ea
Free Shipping & Returns
Key Features
Type
Angular
Product Type
2-Jaw Angular Gripper
Port Size
M5
Seal Material
Buna-N
Series
RA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RA-5M
Zoro #
G1156891
UPC #
-
Country of Origin
United States
Dimensions
Port Size
M5
Size
5
Length
44.5 mm
Bore Size
20.6 mm
Height
30.1 mm
Open Width
44.5 mm
Overall Width
76.2 mm
Inlet Size
M5
Overall Height
35 mm
Overall Length
44.5 mm
Maximum Finger Length
50 mm
Description
Angular Gripper, Series RA, Open Width 44.5 mm, Total Stroke 30 Degrees , Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 44.5 mm, Overall Width 76.2 mm, Overall Height 35 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 15 Degrees , IP Rating IP43, Gripper Rotation 15 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size M5, Weight 0.11 kg
