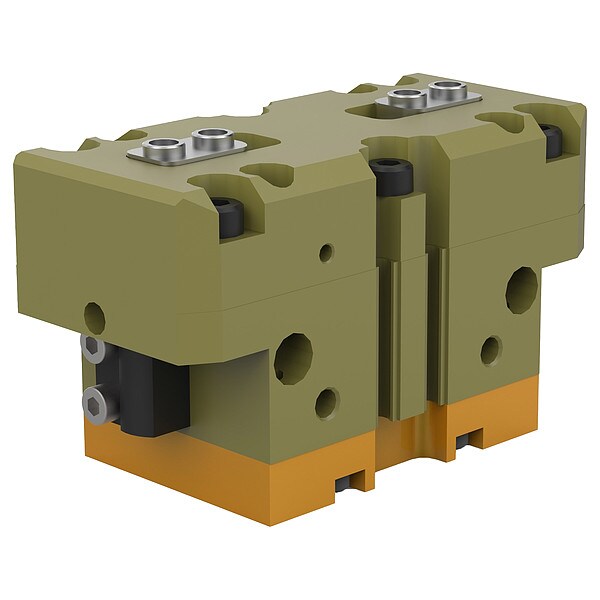

Jaw Parallel Gripper, Series Rdh 2
Mfr # RDH-2M-L
Zoro # G1157655
product price: $1,940.99
/ea
Free Shipping & Returns
Key Features
Type
Parallel
Size
2M
Height
83 mm
Overall Height
83 mm
Overall Width
83 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RDH-2M-L
Zoro #
G1157655
UPC #
-
Country of Origin
France
Dimensions
Size
2M
Height
83 mm
Overall Height
83 mm
Overall Width
83 mm
Overall Length
40 mm
Dimension a
10 mm
Bore Size
32 mm
Dimension B
13.5 mm
Port Size
M3 x 4
Open Width
83 mm
Stroke Length
12 mm
Inlet Size
M5
Maximum Finger/Jaw Length
102 mm
Description
Parallel Jaw Gripper, Series RDH, Open Width 83 mm, Stroke Length 12 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 40 mm, Overall Width 83 mm, Overall Height 83 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.53 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 494 N, IP Rating IP55, Seal Material Buna-N
