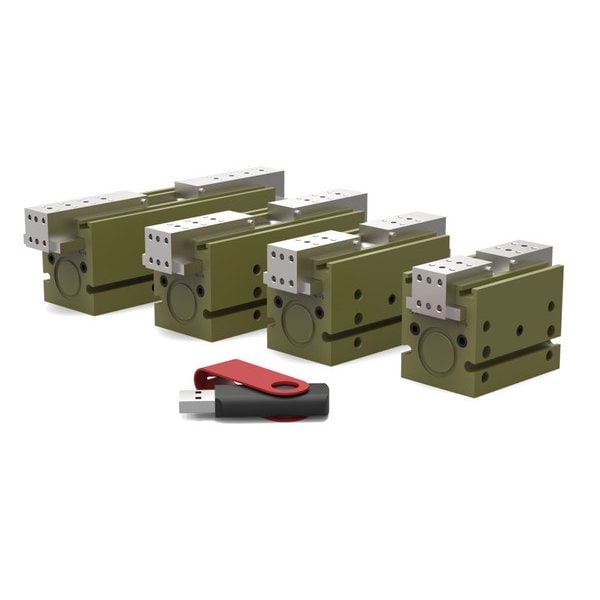

Parallel Gripper, Direct Connect
Mfr # DPG-10M-4
Zoro # G1146288
product price: $1,239.99
/ea
Free Shipping & Returns
Key Features
Type
Parallel
Length
38.1 mm
Overall Length
34.9 mm
Overall Height
44.9 mm
Height
191 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DPG-10M-4
Zoro #
G1146288
UPC #
-
Country of Origin
United States
Dimensions
Length
38.1 mm
Overall Length
34.9 mm
Overall Height
44.9 mm
Height
191 mm
Overall Width
137 mm
Size
4
Closed Width
111.3 mm
Bore Size
17.5 mm
Dimension C
111.3 mm
Open Width
111 mm
Dimension B
136.7 mm
Dimension a
106.4 mm
Port Size
M3
Inlet Size
M5
Maximum Finger/Jaw Length
127 mm
Stroke Length
25.4 mm
Description
Parallel Gripper, Series DPG, Open Width 111 mm, Stroke Length 25.4 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 34.9 mm, Overall Width 137 mm, Overall Height 44.9 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.36 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 222 N, IP Rating IP54, Seal Material Buna-N
