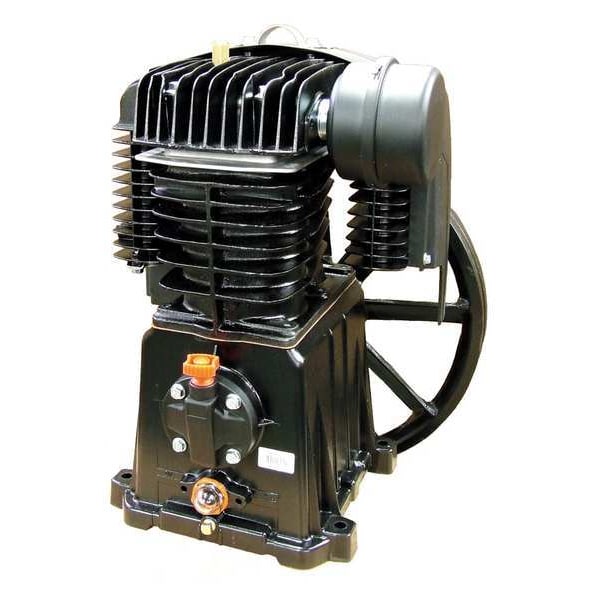

Air Compressor Pump, 5 hp, 7 1/2 hp, 2 Stage, 45 fl oz Oil Capacity, 2 Cylinder
Mfr # PMP22BK119GR
Zoro # G6111402
product price: $846.89
/ea
Free Shipping & Returns
Key Features
HP
5 hp, 7 1/2 hp
Number of Stages
2
Lubrication Type
Splash Lubricated
Number of Cylinders
2
Max. Pressure
175 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
PMP22BK119GR
Zoro #
G6111402
UPC #
662865009699
Country of Origin
Italy
Dimensions
Flywheel Dia.
15 in
Bore Dia.
2 3/64 in, 4 1/8 in
Stroke Length
3 1/16 in
Overall Width
15.79 in
Overall Height
18.29 in
Sheave Size @ 1725 RPM
8 in, 11 3/8 in
Overall Depth
14 in
Sheave Size @ 3450 rpm
3 7/8 in
Outlet Size
1 in
Flywheel Diameter
15 in
Bore Diameter
2.04 in, 4.12 in
Description
Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 17.3/23.0 cfm @ 175 psi, Number of Cylinders 2, Maximum Operating Pressure 175 psi, Flywheel Diameter 15 in, Flywheel Included Yes, Pump Speed 1,200 RPM, Construction Aluminum, Cast Iron, Groove Section B, Number of Grooves 1, Valve Type Reed, Valve Material Stainless Steel, Rotation CCW, Stroke Length 3 1/16 in
