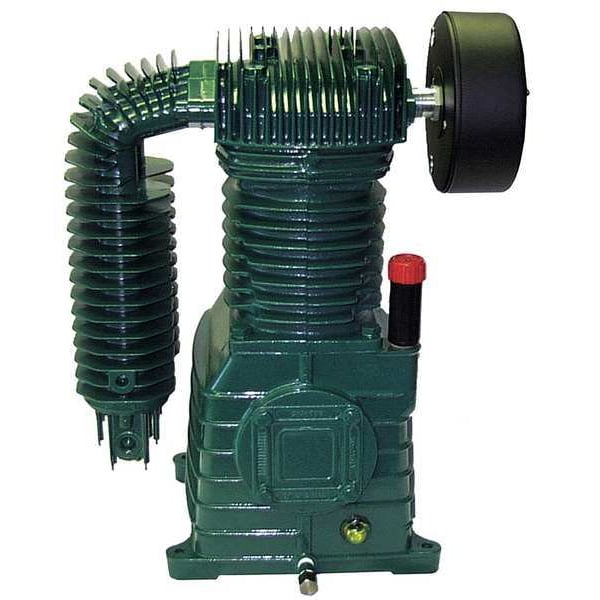

Air Compressor Pump, 5 hp, 7 1/2 hp, 2 Stage, 47 fl oz Oil Capacity, 2 Cylinder
Mfr # PMP22K30GR
Zoro # G9066967
product price:Â $994.99
/ea
Free Shipping & Returns
Key Features
HP
5 hp, 7 1/2 hp
Number of Stages
2
Lubrication Type
Splash Lubricated
Number of Cylinders
2
Max. Pressure
175 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PMP22K30GR
Zoro #
G9066967
UPC #
662865011029
Country of Origin
Italy
Dimensions
Flywheel Dia.
15 in
Overall Width
14 in
Overall Depth
17 in
Sheave Size @ 3450 rpm
3 3/16 in, 4 1/4 in
Sheave Size @ 1725 RPM
7 51/64 in, 10 13/32 in
Overall Height
20 in
Stroke Length
3 1/16 in
Bore Dia.
2 3/64 in, 4 1/8 in
Bore Diameter
2.04 in, 4.12 in
Flywheel Diameter
15 in
Outlet Size
0.75 in
Description
Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 19.1/24.0 cfm @ 175 psi, Number of Cylinders 2, Maximum Operating Pressure 175 psi, Flywheel Diameter 15 in, Flywheel Included Yes, Pump Speed 1,200 RPM, Construction Cast Iron, Groove Section A, Number of Grooves 2, Valve Type Reed, Valve Material Stainless Steel, Rotation CCW, Stroke Length 3 1/16 in
