Wilkerson

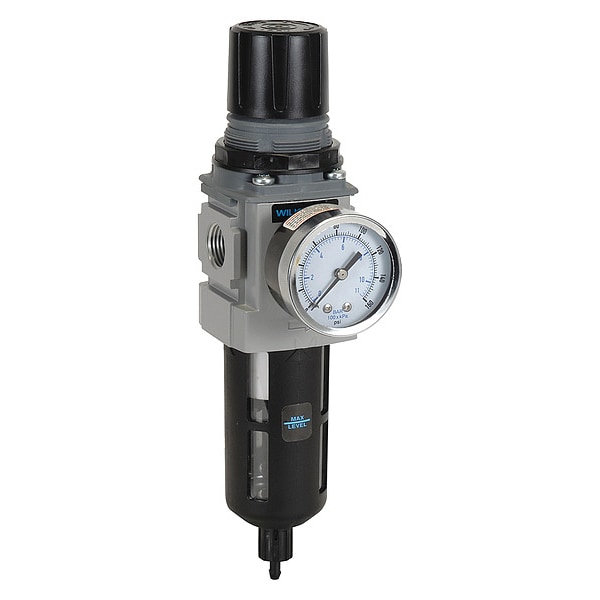

Filter-Regulator, Max. Incoming 150 psi, Drain Type: Manual

product price: $149.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 3/8 in NPT
  • Filter Rating - Air Treatment 5 micron
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Max. Flow - Air Treatment 160 cfm
  • Adjustment Range - Air Treatment 0 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 3/8 in NPT
Size - Air Treatment Compact
Bowl Size - Air Treatment 1.7 oz
Overall Width 2 3/8 in
Overall Height 10 5/16 in
Gauge Port Size 1/4 in
Overall Depth 2 1/4 in
Air Outlet Size 3/8 in
Pressure Gauge Port Size 1/4 in
Air Inlet Size 3/8 in
Overall Length 10.31"

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 160 cfm
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Polycarbonate with Guard
Drain Type Manual
Filter Rating 5 micron
Includes Round Pressure Gauge
Standards ISO 8573-1: 1991 Class 3, ISO 8573-1: 2001 Class 6, ISO Class 3
Adjustment Knob Non Rising
Replaces Wilkerson B18-03-FKG0-23
Max. Temp. 125 Degrees F
Item Filter-Regulator
For Removal Of Particles, Water
Maximum Operating Pressure 150 psi
For Fluid Type Particles, Water
Filter Bowl Guard Included Yes
Filter Bowl Material Plastic
System Location Air Line
Adjustment Mechanism Knob
Drain Included Yes
Maximum Flow Rate 158 cfm
Filter Element Material Polyethylene
Drain Part Compatibility GRP-96-634
Air Outlet Type NPT
Maximum Operating Temperature 125 Degrees F
Number of Air Outlets 1
Filter Bowl Capacity 1.72 oz
Series B18
Pressure Drop 14.5 psi
Weight 1.17 lb
Minimum Regulated Pressure 0 psi
Differential Pressure Indicator Included Yes
Air Inlet Type NPT
Adjustment Mechanism Material Acetal
Modular Connection Modular Connection
Seal Material Nitrile
Minimum Operating Temperature -13 Degrees F
Filter Type Particulate
Pressure Gauge Included Yes
ISO Class 6
Body Material Aluminum
Number of Air Inlets 1
Regulator Type Relieving
Maximum Regulated Pressure 125 psi
For Substance Type Particles, Water

Description

Filter-Regulator, Filter Bowl Material Plastic, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 158 cfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 150 psi, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 2 3/8 in, Series B18, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 3/8 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes
