Shop All Pipe Threading and Cutting Machines
Rothenberger

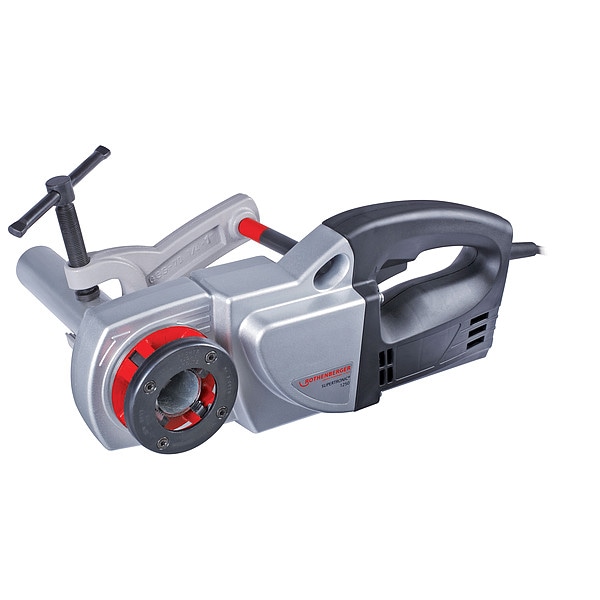

Pipe Threading and Cutting Machines, 1/2 in to 1-1/4 in, Rod: No Rod Bolt: No Bolt

product price: $1,133.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120 V
  • Includes Forged Pipe Clamp, Plastic Case, (4) Precision Die Heads
  • HP 1 hp
  • Phase Single-Phase
  • Features Portable
See all product information

Product Information

Dimensions

For Nominal Pipe Size 1/2 in to 1-1/4 in
Overall Width 14 in
Bolt Size No Bolt
Overall Length 17 in
Rod Size No Rod
Overall Height 3 in
Die Head Sizes 1/4 in to 1 1/4 in
Die Head Sizes Included 1/4 in, 1/2 in, 3/4 in, 1 in
Minimum Bolt Size 1/2 in
Minimum Compatible Pipe Size 1/2 in
Maximum Compatible Pipe Size 1 1/4 in
Maximum Bolt Size 1 1/4 in

Details

Item Portable Pipe Threading Machine
Voltage 120 V
Includes Forged Pipe Clamp, Plastic Case, (4) Precision Die Heads
HP 1 hp
Phase Single-Phase
Features Portable
Corded/Cordless Corded
Capacity Pipe 1/2" to 1-1/4"
Pipe Threading Machine Dies Included 1 in, 1-1/4 in, 1/2 in, 3/4 in
Threading Machine Type Handheld Operation
Corded/Banded Corded
Pipe Threading Machine Die Heads Included 1 in, 1-1/4 in, 1/2 in, 3/4 in
Amps 7.5 A
Standards CE Certified
No. of Speeds 1
Switch Type Electronic Push Button Forward Reverse Control
Pipe Equipment Series No Series
Reversing No
Pipe Threading - Item Handheld Pipe Threading Machine
Hz 50/60
No Load RPM 15 to 25
Pipe Threading Product Grouping Pipe Threading and Cutting Machines
Threading Equipment Included Case, Die Heads, Support Arm
Kit Contents Bare Tool
Machine Type Portable Handheld Power Drive
Current 7.5 A
Portability Portable
Mount Type Handheld
Tool Weight 28 lb
Horsepower 1 hp
Number of Speeds 1
Through-the-Head Oiling Yes
Power Source Corded
Power Output 800 W
Free Speed 25 RPM
Motor Type Brush DC
Thread Standard of Included Dies NPT
Frequency 60 Hz
Reversible Yes
Tool Series Supertronic 1250
Housing Material Aluminum; Plastic
Number of Die Heads 4
Compatible Die Head Type 11R

Description

Portable Pipe Threading Machine, Compatible Die Head Type 11R, Maximum Compatible Pipe Size 1 1/4 in, Minimum Compatible Pipe Size 1/2 in, Current 7.5 A, Die Head Sizes 1/4 in to 1 1/4 in, Die Head Sizes Included 1/4 in, 1/2 in, 3/4 in, 1 in, Free Speed 25 RPM, Frequency 60 Hz, Horsepower 1 hp, Housing Material Aluminum; Plastic, Includes Forged Pipe Clamp, Plastic Case, (4) Precision Die Heads, Kit Contents Bare Tool, Machine Type Portable Handheld Power Drive, Maximum Bolt Size 1 1/4 in
