Shop ROTHENBERGER

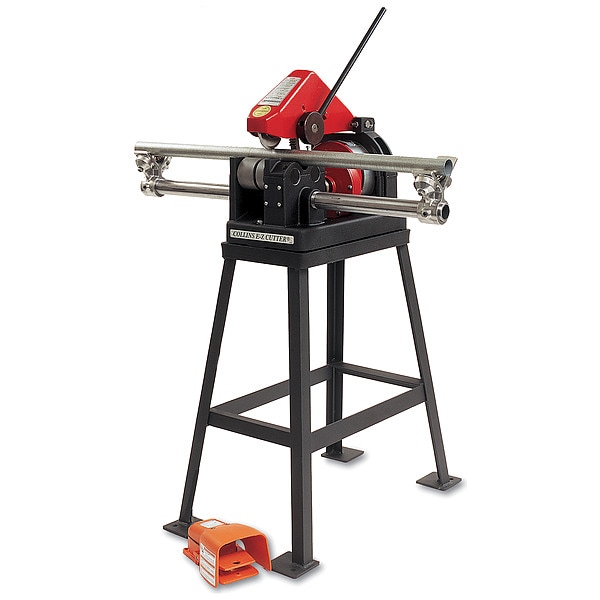

Electric Pipe Cutter, 5/8 to 4-1/2 In

  • Mfr # 00033

  • Zoro # G5708875

product price:
$
7,400.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Overall Length
19 in
Minimum Compatible Pipe Size
1/4 in
Maximum Compatible Pipe Size
4 in
Voltage
120V AC
Includes
(2) Stationary Supports, Heavy-Duty Rollers
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
00033
Zoro #
G5708875
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
19 in
Minimum Compatible Pipe Size
1/4 in
Maximum Compatible Pipe Size
4 in
Overall Width
10 in
Tube Size
5/8 in to 4-1/2 in
Minimum Compatible Tubing Size
0.6 in
Maximum Compatible Tubing Size
4.5 in
Dedupe to Minimum Compatible Pipe Size and Maximum Compatible Pipe Size
5/8 in to 4-1/2 in
Wire Rope Length
19 in
Length
19 in

Details

Item
Pipe Cutting Machine
Voltage
120V AC
Includes
(2) Stationary Supports, Heavy-Duty Rollers
Features
Ball-Bearing Assembled Cutter Wheel, Foot Switch, High-Speed Tool-Steel Cutter Wheels, Universal AC/DC Motor
Tool Series
E-Z Cutter
Switch Type
Foot Pedal
Capacity
Tube 5/8" to 4-1/2"
Machine Capacity
Pipe 5/8 in to 4-1/2 in
Characteristics
Gear-Driven Rollers, Foot Switch For Operator Safety
Phase
Single-Phase
Functions With
Pipes
Application
Production Cutting
Compatible Threader Series
E-Z Cutter
Free Speed
72 RPM
Power Source
Corded
Compatible Material Type
Aluminum, Brass, Copper, Plastic-Coated Pipe, Thin-Walled Steel
Blade Material
Steel
Current
15 A
Horsepower
1/2 hp
Number of Speeds
1
Kit Contents
Bare Tool
Frequency
60 Hz
Reversible
No

Description

The ROTHENBERGER - 33 is a corded, single-phase pipe cutting machine intended for pipe and tubing cutting applications. It operates at 120V AC with a universal AC/DC motor rated motor output of 1/2 hp and a free speed of 72 RPM. The machine is compatible with materials such as aluminum, brass, copper, plastic-coated pipe, and thin-walled steel. It features gear-driven rollers and a foot pedal switch for operation control, rated for cutting pipe and tubing sizes within the stated diameter range (5/8 in to 4-1/2 in).

Key Features:

  • Machine capacity: Pipe and tubing sizes from 5/8 in up to 4-1/2 in diameter.
  • Motor: Rated motor output of 1/2 hp universal AC/DC motor operating at 120V AC, 15 A, 60 Hz.
  • Cutter wheel: High-speed tool-steel with ball-bearing assembly.
  • Operation: Single speed at 72 RPM with foot pedal switch control.
  • Included components: Two stationary supports and heavy-duty rollers for pipe stability.
  • Dimensions: Overall length 19 in, overall width 10 in.
  • Features gear-driven rollers.
  • Part of the E-Z Cutter tool series and designed for pipe cutting applications.
