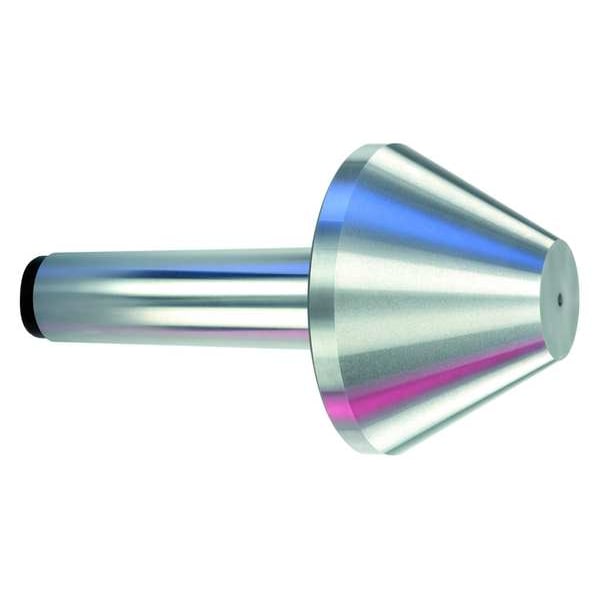

Royal Products HSS Live Center, 5 MT, Bull Head 10909 - main

HSS Live Center, 5 MT, Bull Head

  • Mfr # 10909

  • Zoro # G2040879

product price: $3,048.99
/ea
Free Shipping & Returns

Key Features

Included Angle (Deg.)
60
Point Type
Bull Head
Morse Taper
5 MT
Function
Turning Pipes, Tubes and Parts with Extra Large Center Holes
Thrust Rating (Lb.)
4500
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10909
Zoro #
G2040879
UPC #
698230109091
Country of Origin
United States

Dimensions

Dimension E (In.)
3.6
Dimension F (In.)
2.5
Dimension B (In.)
6.15
Point Dia.
2 1/2 in
Head Dia.
5.1500 in
Shank Taper Size
MT5
Head Length
3.6 in
Head Diameter
6.15 in
Point Diameter
2.5 in

Details

Item
Live Center
Included Angle (Deg.)
60
Point Type
Bull Head
Morse Taper
5 MT
Function
Turning Pipes, Tubes and Parts with Extra Large Center Holes
Thrust Rating (Lb.)
4500
Weight of Workpiece (Lb.)
1450
Accuracy
+/-0.00005"
Construction
Steel
Bearings
Dual-Bearing Design
Max. RPM
3500
Features
Bull Head Design is Shorter than a Pipe Head, Reducing Potential Interference in Blind Center Hole Applications and Ensuring that the load is Positioned Over the Bearings for Optimum Strength, Designed for Turning Pipes, Tubes, and Parts with Extra-Large Center Holes, Head Diameter is 1/8 in Over Nominal Size, Enabling these Centers to Cover a Wider Range of Workpieces, Two Matched Angular Contact Bearings Provide Good Thrust and Radial Load Ratings
Body Material
High Speed Steel
Point Style
Bull Head
Bearing Type
Dual-Bearing Design
Included Angle
60 Degrees
Thrust Load
4,500 lb
Application
Blind Center Holes
Max. Workpiece Weight
1,450 lb
Max. Speed
3,500 RPM
Shank Type - Machining
Taper
Material
Steel
Shank Type
Taper
Workpiece Weight - Maximum
1,450 lb
Speed - Maximum
3,500 RPM

Description

Live Center, Bearing Type Dual-Bearing Design, Point Style Bull Head, Shank Taper Size MT5, Max. Speed 3,500 RPM, Shank Type - Machining Taper, Head Dia. 5.1500 in, Head Length 3.6 in, Point Dia. 2 1/2 in, Max. Workpiece Weight 1,450 lb, Accuracy +/-0.00005 In., Application Blind Center Holes
