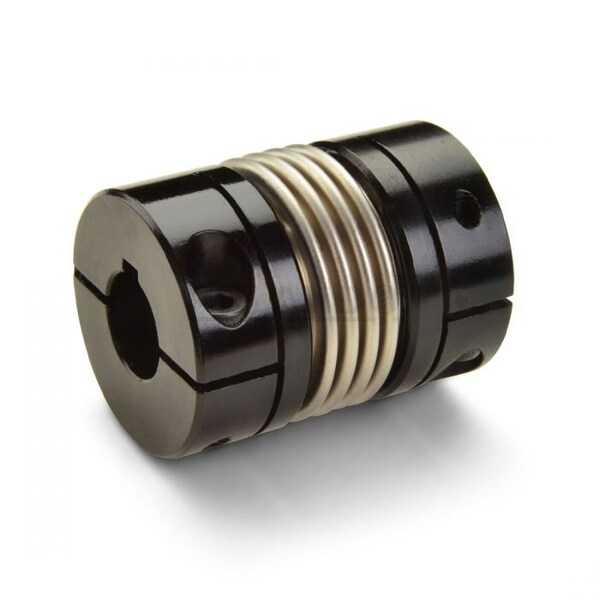

Bellows Coupling
Mfr # BCK50-45MM-1 3/4"-A
Zoro # G808677197
product price:Â
$
314.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3.82 in
Bore Tolerance
+0.001/-0.000 in
Dynamic Torque Reversing
337.5 lb-in
Axial Motion
0.03 in
Moment of Inertia
2.603 lb-in sq
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BCK50-45MM-1 3/4"-A
- Zoro #
- G808677197
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 3.82 in
- Coupling Outside Diameter
- 3.13 in
- Maximum Bore Diameter
- 45 mm
- Minimum Bore Diameter
- 1 3/4 in
- Different Bore Sizes
- Yes
- Bore Diameter 2
- 1 3/4 in
- Bore Diameter 1
- 45 mm
- Screw Length
- 25 mm
- Screw Thread Size
- M8
- Length Through Bore 1
- 1.75 in
- Keyway Depth 2
- 3/16 in
- Keyway Width 1
- 14 mm
- Keyway Width 2
- 3/8 in
- Keyway Depth 1
- 3.8 mm
- Length Through Bore 2
- 1.75 in
- Clearance Diameter
- 3.13 in
- Hub Length
- 1.38 in
- Wire Rope Length
- 3.82 in
- Length
- 3.82 in
Description
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 1 3/4 in, Coupling Outside Diameter 3.13 in, Maximum Speed 10,000 RPM, Maximum Torque 1,350 lb-in, Hub Material Aluminum, Overall Length 3.82 in, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Clearance Diameter 3.13 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 1.75 in, Length Through Bore 2 1.75 in, Parallel Misalignment 0.012 in, Bore Type Round Keyed
