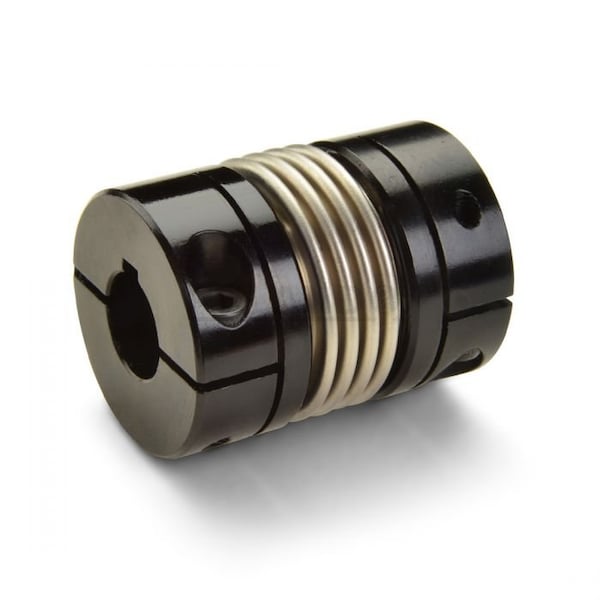

Bellows Coupling
Mfr # MBCK80-25-25-A
Zoro # G808677050
product price: $263.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Bore Tolerance
+0.03/-0.00 mm
Moment of Inertia
0.0008299 kgf/m sq
Dynamic Torque Reversing
38 N-m
Screw Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK80-25-25-A
Zoro #
G808677050
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Coupling Outside Diameter
79.4 mm
Bore Diameter 1
25 mm
Bore Diameter 2
25 mm
Different Bore Sizes
No
Clearance Diameter
79.4 mm
Hub Length
34.93 mm
Keyway Width 2
8 mm
Screw Length
25 mm
Minimum Bore Diameter
25 mm
Screw Thread Size
M8
Keyway Depth 1
3.3 mm
Maximum Bore Diameter
25 mm
Keyway Width 1
8 mm
Length Through Bore 1
44.5 mm
Keyway Depth 2
3.3 mm
Length Through Bore 2
44.5 mm
Description
Bellows Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
