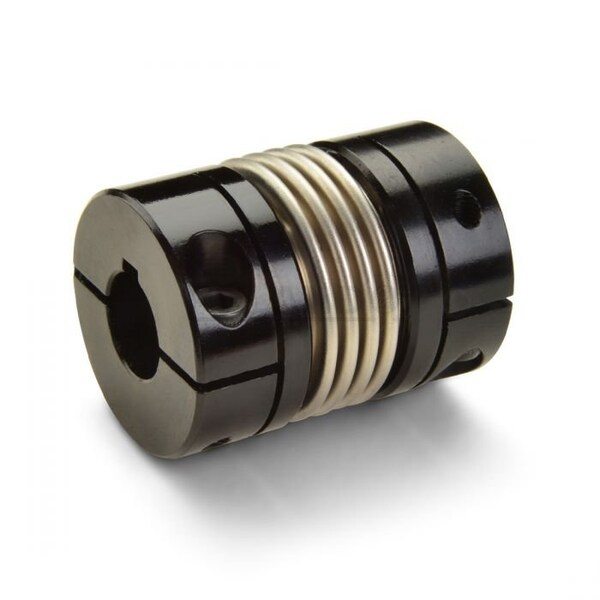

Bellows Coupling
Mfr # MBCK80-35-25-A
Zoro # G408676965
product price: $263.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Moment of Inertia
0.0008195 kgf/m sq
Axial Motion
0.76 mm
Dynamic Torque Non-Reversing
76 N-m
Screw Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK80-35-25-A
Zoro #
G408676965
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Minimum Bore Diameter
25 mm
Bore Diameter 1
35 mm
Different Bore Sizes
Yes
Maximum Bore Diameter
35 mm
Coupling Outside Diameter
79.4 mm
Bore Diameter 2
25 mm
Clearance Diameter
79.4 mm
Keyway Width 2
8 mm
Keyway Depth 2
3.3 mm
Keyway Width 1
10 mm
Length Through Bore 2
44.5 mm
Keyway Depth 1
3.3 mm
Screw Length
25 mm
Length Through Bore 1
44.5 mm
Screw Thread Size
M8
Hub Length
34.93 mm
Description
Bellows Coupling, Bore Diameter 1 35 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
