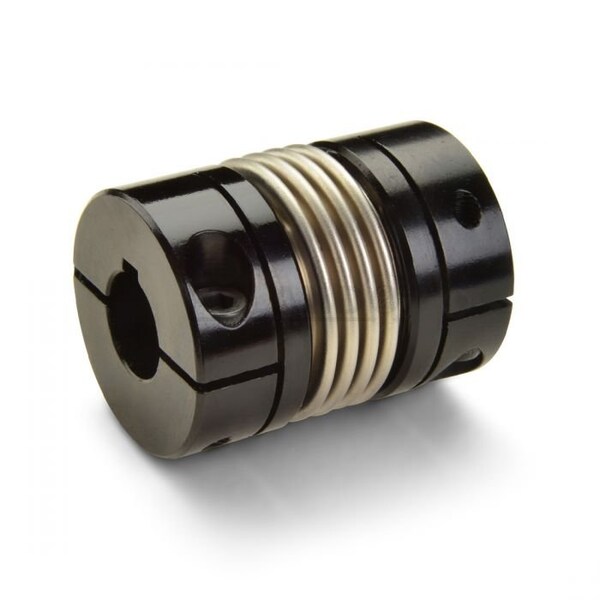

Bellows Coupling
Mfr # MBCK80-45-25-A
Zoro # G508677046
product price: $290.99
/ea
Free Shipping & Returns
Key Features
Overall Length
96.9 mm
Dynamic Torque Reversing
38 N-m
Dynamic Torque Non-Reversing
76 N-m
Bore Tolerance
+0.03/-0.00 mm
Screw Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MBCK80-45-25-A
Zoro #
G508677046
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
96.9 mm
Bore Diameter 2
25 mm
Different Bore Sizes
Yes
Coupling Outside Diameter
79.4 mm
Minimum Bore Diameter
25 mm
Maximum Bore Diameter
45 mm
Bore Diameter 1
45 mm
Hub Length
34.93 mm
Clearance Diameter
79.4 mm
Length Through Bore 2
44.5 mm
Length Through Bore 1
44.5 mm
Keyway Width 2
8 mm
Keyway Depth 1
3.8 mm
Keyway Width 1
14 mm
Keyway Depth 2
3.3 mm
Screw Length
25 mm
Screw Thread Size
M8
Description
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
