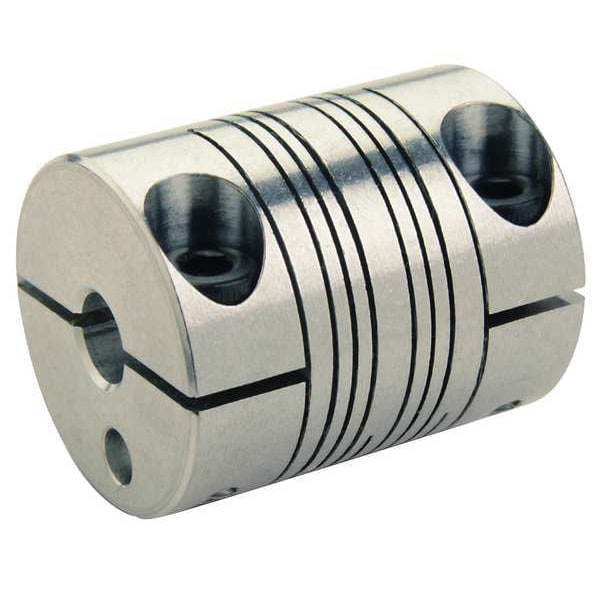

Coupling, 4 Beam Clamp, 7mmx7mm
Mfr # MWC25-7-7-A
Zoro # G8448946
product price: $53.99
/eaKey Features
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Bore Dia.
7mm x 7mm
Material - Couplings
Aluminum
Outside Dia.
25 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MWC25-7-7-A
Zoro #
G8448946
UPC #
634529110669
Country of Origin
United States
Dimensions
Bore Dia.
7mm x 7mm
Outside Dia.
25 mm
Overall Length
30 mm
Screw Size (mm)
M3
Size
MWC25
Screw Size
M3
Overall Length (In.)
1.181
Length through Bore (mm)
13.79
Outside Dia. (In.)
0.984
Outside Dia. (mm)
25
Clearance Dia. (mm)
30
Overall Length (mm)
30
Length through Bore
13.79 mm
Length through Bore (In.)
0.543
Clearance Dia. (In.)
1.181 in
Length Through Bore 1
14.2 mm
Screw Thread Size
M3
Bore Diameter 2
7 mm
Coupling Outside Diameter
25 mm
Length Through Bore 2
14.2 mm
Different Bore Sizes
No
Bore Diameter 1
7 mm
Description
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 7 mm, Bore Diameter 2 7 mm, Coupling Material Aluminum, Coupling Outside Diameter 25 mm, Maximum Speed 6,000 RPM, Maximum Torque 3.42 N-m, Axial Motion 0.25 mm, Overall Length 30 mm, Parallel Misalignment 0.38 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.82 N-m/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 14.2 mm
