  11. Coupling, 4 Beam Set Screw, 4mmx4mm

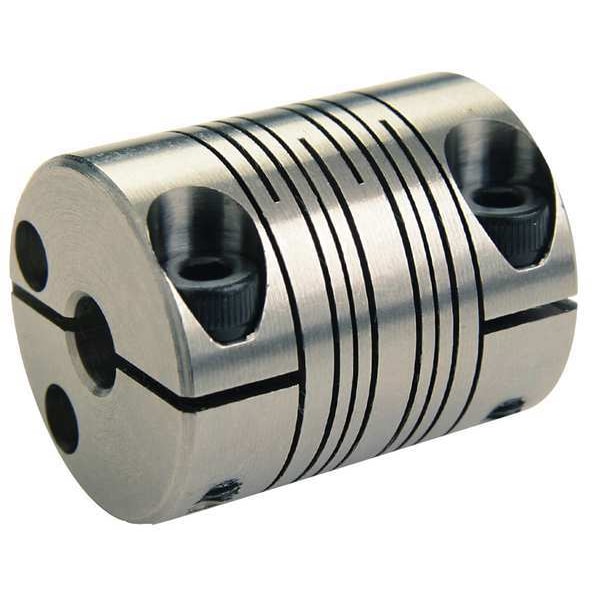

Ruland Coupling, 4 Beam Set Screw, 4mmx4mm MWS15-4-4-SS - main

Coupling, 4 Beam Set Screw, 4mmx4mm

  • Mfr # MWS15-4-4-SS

  • Zoro # G8441072

product price: $72.19
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Metric
Bore Dia.
4mm x 4mm
Material - Couplings
Stainless Steel
Outside Dia.
15 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MWS15-4-4-SS
Zoro #
G8441072
UPC #
634529056011
Country of Origin
United States

Dimensions

Bore Dia.
4mm x 4mm
Outside Dia.
15 mm
Overall Length
20 mm
Size
MWS15
Overall Length (In.)
0.787
Length through Bore (mm)
9.41
Clearance Dia. (In.)
0.984 in
Length through Bore (In.)
0.37
Screw Size (mm)
M3
Clearance Dia. (mm)
25
Outside Dia. (mm)
15
Outside Dia. (In.)
0.591
Screw Size
M3
Overall Length (mm)
20
Length through Bore
9.41 mm
Length Through Bore 1
9.6 mm
Coupling Outside Diameter
15 mm
Bore Diameter 2
4 mm
Length Through Bore 2
9.6 mm
Screw Thread Size
M3
Different Bore Sizes
No
Bore Diameter 1
4 mm

Details

Item
Motion Control Coupling
Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Metric
Material - Couplings
Stainless Steel
Finish
Bright
Torsional Stiffness (Deg./In.-Lbs.)
0.252
Item - Motion Control Couplings
Motion Control Coupling
Max. Bore (mm)
4 mm
Setscrew Location
2 (120 Degrees )
Style
4-Beam Set Screw
Min. Bore (mm)
4
Screw Type
Set Screw
Max. Axial Misalignment (In.)
+/-0.005
Max. Temp. Range (F)
350 Degrees
Max. Parallel Misalignment (In.)
0.008 in
Max. Temp.
350 Degrees F
Rated Torque
12 in-lb
Max. Angular Misalignment
3 Degrees
Max. RPM
6,000 RPM
Torque (In.-Lbs.)
12
Material
Stainless Steel
Application
Light-Duty Power Transmission, Servo Motors to Lead Screws
Standards
Conflict Minerals Compliant, DIN 912 12.9, REACH Compliant, RoHS3 Compliant
Screw Material
Alloy Steel
Bore Tolerance
+0.025/-0.000 mm
Minimum Operating Temperature
-40 Degrees C
Coupling Material Finish
Bright
Parallel Misalignment
0.2 mm
Zero Backlash
Yes
Torsional Stiffness
0.45 N-m/Deg
Coupling Material
Stainless Steel
Coupling Material Grade
303
Features
Balanced Design for Reduced Vibration
For Misalignment Type
Angular, Axial, Parallel
Shaft Tolerance
+0.000/-0.013 mm
Series
MWS
Dynamic Torque Reversing
0.33 N-m
Number of Beams
4
Number of Locking Screws
4
Bore Type
Round
Included Screws
(4) Set Screw
Moment of Inertia
0.000000731 kgf/m sq
Angular Misalignment
3 Degrees
Axial Motion
0.12 mm
Shaft Locking Type
Set Screw
Maximum Operating Temperature
176 Degrees C
Maximum Speed
6,000 RPM
Screw Material Finish
Black Oxide
Fastener Tightening Torque
0.92 N-m
Full Bearing Support Required
Yes
Dynamic Torque Non-Reversing
0.65 N-m
Maximum Torque
1.3 N-m
For Environment
Angular Misalignment, Axial Motion, Parallel Misalignment

Description

Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 4 mm, Bore Diameter 2 4 mm, Coupling Material Stainless Steel, Coupling Outside Diameter 15 mm, Maximum Speed 6,000 RPM, Maximum Torque 1.3 N-m, Axial Motion 0.12 mm, Overall Length 20 mm, Parallel Misalignment 0.2 mm, System of Measurement Metric, Different Bore Sizes No, Torsional Stiffness 0.45 N-m/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 4, Length Through Bore 2 9.6 mm
