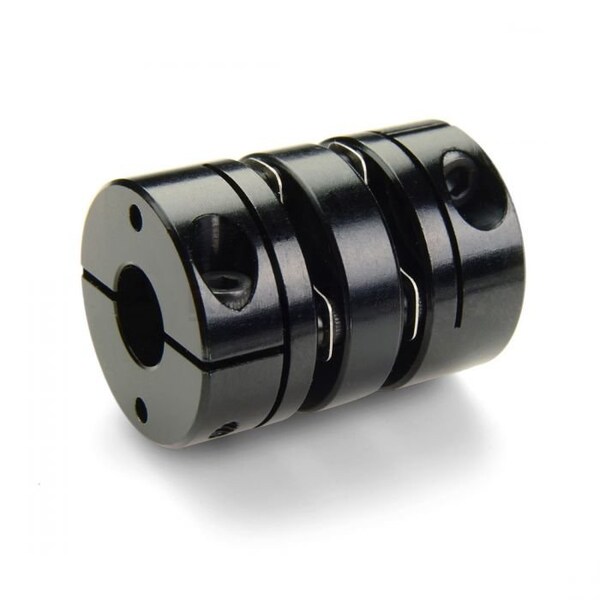

Disc Coupling
Mfr # DCD50-1 1/4"-25MM-A
Zoro # G308677949
product price: $231.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 63/64 in
System of Measurement
Inch to Metric Bore
Bore Diameter 2
25 mm
Minimum Operating Temperature
-10 Degrees F
Different Bore Sizes
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DCD50-1 1/4"-25MM-A
Zoro #
G308677949
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3 63/64 in
Bore Diameter 2
25 mm
Different Bore Sizes
Yes
Coupling Outside Diameter
3 1/8 in
Minimum Bore Diameter
25 mm
Maximum Bore Diameter
1 1/4 in
Bore Diameter 1
1 1/4 in
Details
Item
Disc Coupling
System of Measurement
Inch to Metric Bore
Minimum Operating Temperature
-10 Degrees F
For Misalignment Type
Parallel
Center Spacer Material
Aluminum
Hub Material Finish
Anodized
Maximum Operating Temperature
200 Degrees F
Disc Material
Stainless Steel
Shaft Locking Type
Clamp On
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Hub Material
Aluminum
Number of Discs
2 with Center Spacer
Maximum Speed
10,000 RPM
Zero Backlash
Yes
Hub Material Grade
2024
Standards
RoHS3 and REACH Compliant
Disc Material Grade
302
Description
Disc Coupling, Bore Diameter 1 1 1/4 in, Bore Diameter 2 25 mm, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 1 1/4 in, Minimum Bore Diameter 25 mm, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
