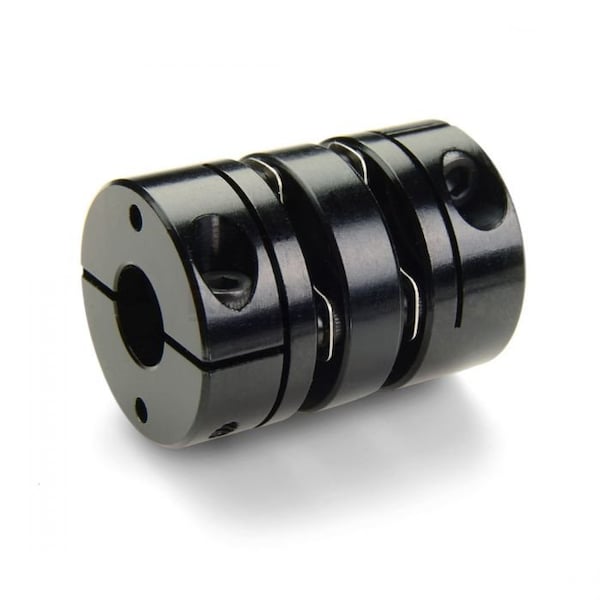

Disc Coupling
Mfr # DCD50-1 3/4"-25MM-A
Zoro # G308677963
product price: $210.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 63/64 in
Disc Material Grade
302
Hub Material Grade
2024
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Disc Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DCD50-1 3/4"-25MM-A
Zoro #
G308677963
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3 63/64 in
Coupling Outside Diameter
3 1/8 in
Different Bore Sizes
Yes
Bore Diameter 1
1 3/4 in
Bore Diameter 2
25 mm
Maximum Bore Diameter
1 3/4 in
Minimum Bore Diameter
25 mm
Details
Item
Disc Coupling
Disc Material Grade
302
Hub Material Grade
2024
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Disc Material
Stainless Steel
For Misalignment Type
Parallel
Maximum Speed
10,000 RPM
System of Measurement
Inch to Metric Bore
Shaft Locking Type
Clamp On
Number of Discs
2 with Center Spacer
Maximum Operating Temperature
200 Degrees F
Zero Backlash
Yes
Center Spacer Material
Aluminum
Standards
RoHS3 and REACH Compliant
Hub Material Finish
Anodized
Minimum Operating Temperature
-10 Degrees F
Hub Material
Aluminum
Description
Disc Coupling, Bore Diameter 1 1 3/4 in, Bore Diameter 2 25 mm, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 1 3/4 in, Minimum Bore Diameter 25 mm, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
