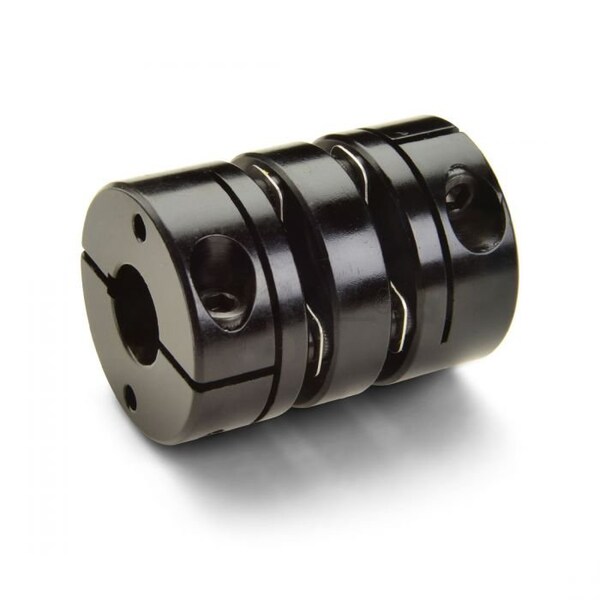

Disc Coupling
Mfr # DCDK44-1 1/2"-35MM-A
Zoro # G608677977
product price: $233.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 17/32 in
Bore Tolerance
+0.001/-0.000 in
Moment of Inertia
1.6023 lb-in sq
Screw Material
Alloy Steel
Axial Motion
0.03 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DCDK44-1 1/2"-35MM-A
Zoro #
G608677977
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3 17/32 in
Coupling Outside Diameter
2 3/4 in
Maximum Bore Diameter
1 1/2 in
Bore Diameter 2
35 mm
Keyway Depth 1
5/32 in
Minimum Bore Diameter
35 mm
Keyway Width 1
5/16 in
Different Bore Sizes
Yes
Bore Diameter 1
1 1/2 in
Clearance Diameter
2.8 in
Length Through Bore 2
1.7 in
Keyway Width 2
10 mm
Hub Length
1.2 in
Length Through Bore 1
1.2 in
Keyway Depth 2
3.3 mm
Screw Thread Size
M8
Screw Length
20 mm
Description
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.03 in, Bore Diameter 1 1 1/2 in, Bore Diameter 2 35 mm, Bore Type Round with Keyway, Clearance Diameter 2.8 in, Dynamic Torque Non-Reversing 425 in-lb, Hub Length 1.2 in, Hub Material Aluminum, Dynamic Torque Reversing 212.5 in-lb, Coupling Outside Diameter 2 3/4 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 1.2 in, Length Through Bore 2 1.7 in, Maximum Bore Diameter 1 1/2 in
