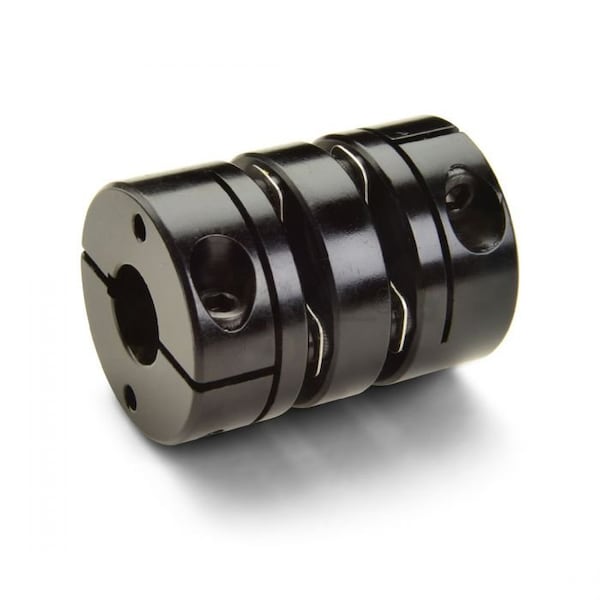

Disc Coupling
Mfr # MDCDK70-25-25-A
Zoro # G908678278
product price: $211.99
/ea
Free Shipping & Returns
Key Features
Overall Length
89.7 mm
Dynamic Torque Non-Reversing
48 N-m
Bore Tolerance
+0.03/-0.00 mm
Screw Material
Alloy Steel
Moment of Inertia
0.00004923 kgf/m sq
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MDCDK70-25-25-A
Zoro #
G908678278
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
89.7 mm
Bore Diameter 2
25 mm
Keyway Depth 1
3.3 mm
Different Bore Sizes
No
Bore Diameter 1
25 mm
Coupling Outside Diameter
69.9 mm
Keyway Width 1
8 mm
Length Through Bore 1
41.9 mm
Screw Length
20 mm
Keyway Depth 2
3.3 mm
Minimum Bore Diameter
25 mm
Clearance Diameter
69.9 mm
Keyway Width 2
8 mm
Length Through Bore 2
41.9 mm
Hub Length
30.5 mm
Maximum Bore Diameter
25 mm
Screw Thread Size
M8
Description
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Bore Type Round with Keyway, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 25 mm
