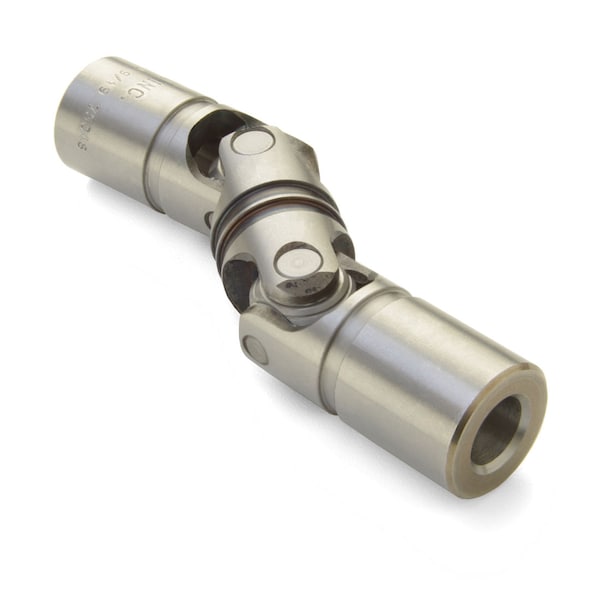

Double U-Joint, 3/8" x 3/8" Bores, 0.995" OD, Steel
Mfr # UD16-6-6-F
Zoro # G300675868
product price: $425.99
/ea
Free Shipping & Returns
Key Features
Type
Double, Friction Bearing
Outside Dia.
0.995 in
Bore
0.3750 in x 0.3750 in
SAE or Metric
Inch
Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UD16-6-6-F
Zoro #
G300675868
UPC #
63452931681
Country of Origin
United States
Dimensions
Outside Dia.
0.995 in
Length
4.875 in
Yoke Length (LY)
1.688 in
Hub Depth
1.190 in
Details
Type
Double, Friction Bearing
Bore
0.3750 in x 0.3750 in
SAE or Metric
Inch
Material
Alloy Steel
Lubrication
LUBRIPLATE No. 1200-2
Weight
0.745 lbs
B2 Shaft Penetration
1.190 in
Style
Round Bore
Matching Boot
UBOOT16/25-NI-KIT
Bore Tolerance
+0.0010 in / -0.0000 in
Rated Torque
405 in-lb
Max Operating Angle
90°
B1 Shaft Penetration
1.190 in
Max. Torque
2025 in-lb
Description
This Ruland double friction bearing universal joint has 0.3750" x 0.3750" bores, a 0.995" outer diameter, and a 4.875" length. It is ideal for applications with wide distances between shafts and can accommodate all forms of misalignment. This double universal joint is made of two blocks, four pins, one center spacer, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 90°, which is a significant improvement over commodity style double universal joints. It is made from high grade alloy steel for high torque capabilities. The user can add boots to protect the joints from unwanted contaminants and increase service life. This double friction bearing universal joint is manufactured in the USA by Belden Universal and rebored by Ruland for the shortest lead time in the industry.
