Double U-Joint Kit, Machinable, 1.995" (50.7 mm) OD, Steel
Mfr # UD32-XX-XX-F-KIT
Zoro # G900676098
product price:
$
568.99
/ea
Free Shipping & Returns
Key Features
Type
Double, Friction Bearing
Outside Dia.
1.995 in (50.7 mm)
Lubrication
LUBRIPLATE No. 1200-2
SAE or Metric
Inch/Metric
Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UD32-XX-XX-F-KIT
- Zoro #
- G900676098
- UPC #
- 63452928871
- Country of Origin
- United States
Dimensions
- Outside Dia.
- 1.995 in (50.7 mm)
- Length
- 8.688 in (220.7 mm)
- Yoke Length (LY)
- 2.750 in (69.9 mm)
- Hub Depth
- 1.700 in (43.2 mm)
Details
- Type
- Double, Friction Bearing
- Lubrication
- LUBRIPLATE No. 1200-2
- SAE or Metric
- Inch/Metric
- Material
- Alloy Steel
- Weight
- 6.075 lbs
- B2 Shaft Penetration
- 1.700 in (43.2 mm)
- Max Square or Hex Bore (Inch)
- 1.1250 in
- Max Round Bore (Inch)
- 1.1875 in
- Max Operating Angle
- 90°
- Max Square or Hex Bore (Metric)
- 30 mm
- Max Blind Bore (Metric)
- 38 mm
- Max Round Bore (Metric)
- 30 mm
- B1 Shaft Penetration
- 1.700 in (43.2 mm)
- Style
- Machinable Bore, Assembled
- Max Blind Bore (Inch)
- 1.5000 in
- Rated Torque
- 3870 in-lb (437.3 Nm)
- Max. Torque
- 19350 in-lb (2186.3 Nm)
- Max Round Bore With Key (Metric)
- 30mm Bore, 8mm Keyway
- Max Round Bore With Key (Inch)
- 1-3/16" Bore, 1/4" Keyway
- Matching Boot
- UBOOT32/51-NI-KIT
Description

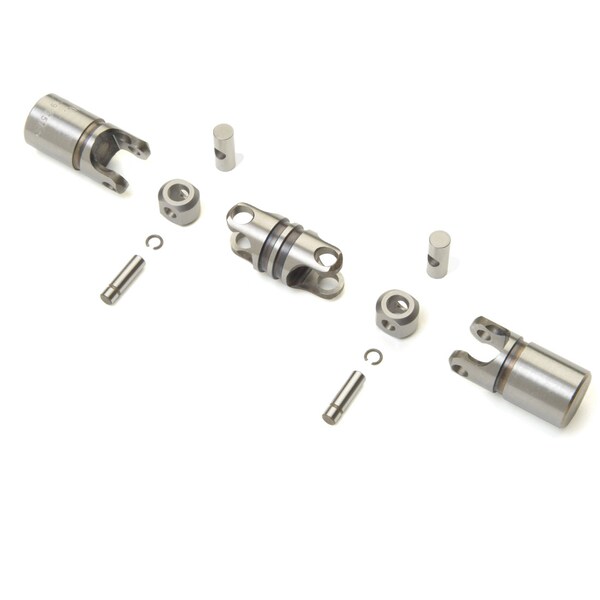

This Ruland machinable bore double friction bearing universal joint kit has a 1.995" outer diameter and 8.688" length. The design allows the user to put a bore size and/or geometry of their choice into each yoke. It is best suited for applications with a wide gap between shaft ends and can accommodate all forms of misalignment. This double universal joint is made of two blocks, four pins, one center spacer, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 90°, which is a significant improvement over commodity style double universal joints. It is made from high grade alloy steel for high torque capabilities. The user can add boots to protect the joints from unwanted contaminants and increase service life. This double friction bearing universal joint is manufactured in the USA by Belden Universal and inventoried by Ruland for quick turnaround.
