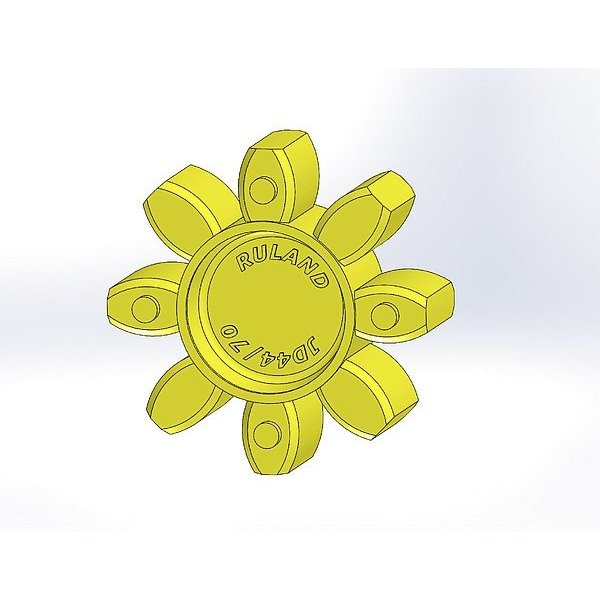

Jaw Coupling Spider

Mfr # JD44/70-92Y
Zoro # G508675646

44.39

Key Features

Color

Yellow

Coupling Size

JC44, JCC44, MJC70, MJCC70

For Misalignment Type

Angular, Axial, Parallel

Spider Material

Polyurethane

System of Measurement

Inch

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: JD44/70-92Y
Zoro #: G508675646
UPC #: -
Country of Origin: United States

Dimensions

Coupling Size: JC44, JCC44, MJC70, MJCC70
Outside Diameter: 2 3/4 in
Spider Width: 1.08 in

Details

Color: Yellow
Item: Jaw Coupling Spider
For Misalignment Type: Angular, Axial, Parallel
Spider Material: Polyurethane
System of Measurement: Inch
Maximum Operating Temperature: 180 Degrees F
Durometer Hardness: 92A
Maximum Speed: 8,000 RPM
Minimum Operating Temperature: -10 Degrees F
Maximum Torque: 600 in-lb
Standards: Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Horsepower @ 100 RPM: 0.476 hp
Spider Type: Solid Center Spider
Weight: 0.1289 lb
Compatible Hub Manufacturer Part Number: JC44, JCC44, MJC70, MJCC70
Torsional Stiffness: 500 in-lb/Deg
Axial Motion: 0.05 in
Working Torque: 300 in-lb
Parallel Misalignment: 0.008 in
Fail Safe: Yes
Resistance Properties: Chemical Resistant, Oil Resistant
Angular Misalignment: 0.9 Degrees
Zero Backlash: Yes
Deform Torque: 1,200 lb-in
Full Bearing Support Required: Yes
Number of Teeth: 8

Description

Jaw Coupling Spider, Coupling Size JC44, JCC44, MJC70, MJCC70, Outside Diameter 2 3/4 in, System of Measurement Inch, Maximum Speed 8,000 RPM, Horsepower @ 100 RPM 0.476 hp, Spider Material Polyurethane, Maximum Torque 600 in-lb, Parallel Misalignment 0.008 in, Durometer Hardness 92A, Axial Motion 0.05 in, Angular Misalignment 0.9 Degrees , Color Yellow, Compatible Hub Manufacturer Part Number JC44, JCC44, MJC70, MJCC70, Deform Torque 1,200 lb-in, Fail Safe Yes
