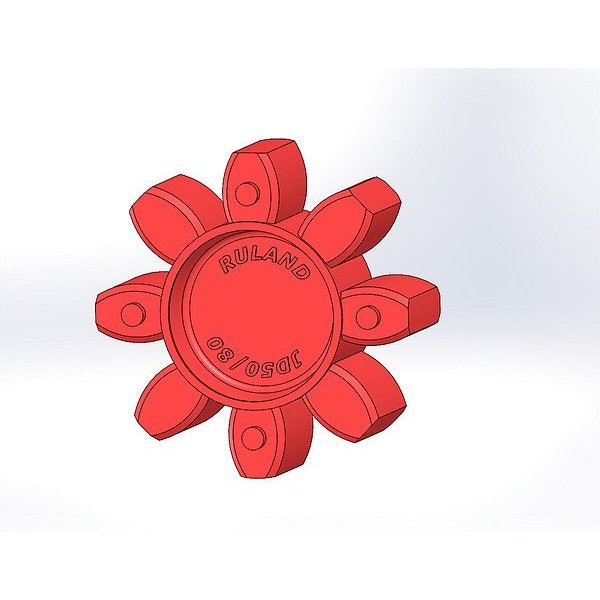

Jaw Coupling Spider

Mfr # JD50/80-98R
Zoro # G208675618

44.69

Key Features

Color

Red

Coupling Size

JC50, JCC50, MJC80, MJCC80

Maximum Speed

8,000 RPM

Spider Material

Polyurethane

Maximum Operating Temperature

180 Degrees F

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: JD50/80-98R
Zoro #: G208675618
UPC #: -
Country of Origin: United States

Dimensions

Coupling Size: JC50, JCC50, MJC80, MJCC80
Outside Diameter: 3 1/8 in
Spider Width: 1.2 in

Details

Color: Red
Item: Jaw Coupling Spider
Maximum Speed: 8,000 RPM
Spider Material: Polyurethane
Maximum Operating Temperature: 180 Degrees F
Minimum Operating Temperature: -10 Degrees F
System of Measurement: Inch
Durometer Hardness: 98A
For Misalignment Type: Angular, Axial, Parallel
Angular Misalignment: 0.8 Degrees
Maximum Torque: 5,520 in-lb
Resistance Properties: Chemical Resistant, Oil Resistant
Spider Type: Solid Center Spider
Full Bearing Support Required: Yes
Weight: 0.1877 lb
Zero Backlash: Yes
Standards: Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Horsepower @ 100 RPM: 4.379 hp
Fail Safe: Yes
Working Torque: 2,760 in-lb
Deform Torque: 11,040 lb-in
Compatible Hub Manufacturer Part Number: JC50, JCC50, MJC80, MJCC80
Axial Motion: 0.05 in
Parallel Misalignment: 0.008 in
Torsional Stiffness: 1,850 in-lb/Deg
Number of Teeth: 8

Description

Jaw Coupling Spider, Coupling Size JC50, JCC50, MJC80, MJCC80, Outside Diameter 3 1/8 in, System of Measurement Inch, Maximum Speed 8,000 RPM, Horsepower @ 100 RPM 4.379 hp, Spider Material Polyurethane, Maximum Torque 5,520 in-lb, Parallel Misalignment 0.008 in, Durometer Hardness 98A, Axial Motion 0.05 in, Angular Misalignment 0.8 Degrees , Color Red, Compatible Hub Manufacturer Part Number JC50, JCC50, MJC80, MJCC80, Deform Torque 11,040 lb-in, Fail Safe Yes
