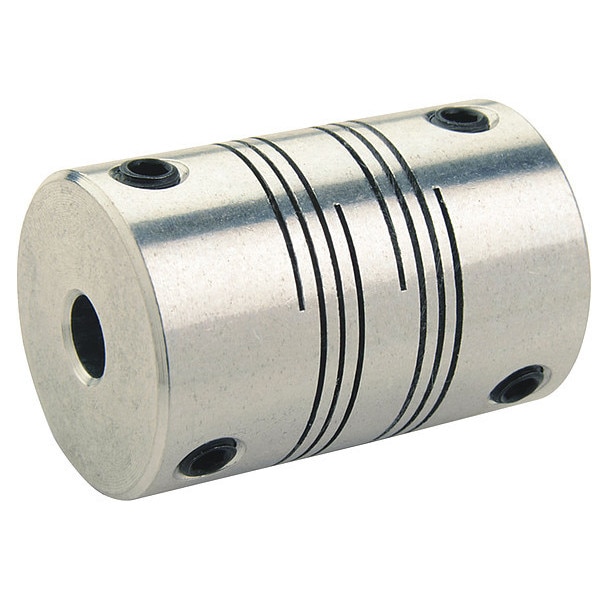

Motion Control Coupling, 6 Beam, 13x8mm, Aluminum, OD 31.8mm, L 44.5mm

Mfr # FSMR32-13-8-A
Zoro # G7089341

56.69

Key Features

Bore Dia.

13 mm x 8 mm

Max. RPM

6000 RPM

Outside Dia.

31.8 mm

Overall Length

44.5 mm

Max. Parallel Misalignment (In.)

0.38 mm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: FSMR32-13-8-A
Zoro #: G7089341
UPC #: 634529210697
Country of Origin: United States

Dimensions

Bore Dia.: 13 mm x 8 mm
Outside Dia.: 31.8 mm
Overall Length: 44.5 mm
Set Screw Size: M6
Fastening Dimensions: Metric

Details

Max. RPM: 6000 RPM
Item: Beam Coupling,6 Beam,13x8mm,Aluminum
Max. Parallel Misalignment (In.): 0.38 mm
Material: Aluminum
Torsional Stiffness (Deg./In.-Lbs.): 0.71 Deg/Nm
Max. Temp. Range (F): -40°F to 225°F (-40°C to 107°C)
Style: Set Screw
Max. Angular Misalignment: 3 deg
Moment of Inertia: 11.885 x10<sup>-6</sup> kg-m<sup>2</sup>
Number of Screws: 4 ea
Dynamic Torque Non-Reversing: 2.54 Nm
B1 Shaft Penetration: 21.4 mm
Screw Material: Alloy Steel
Screw Seating Torque: 7.2 Nm
Axial Motion: 0.25 mm
Bore Tolerance: +0.025 mm / -0.000 mm
Dynamic Torque Reversing: 1.27 Nm
B2 Shaft Penetration: 21.4 mm
Static Torque: 5.08 Nm
Screw Finish: Black Oxide
Measurement Type: Metric
Recommended Shaft Tolerance: +0.000 mm / -0.013 mm

Description

Beam Coupling,6 Beam,13x8mm,Aluminum
