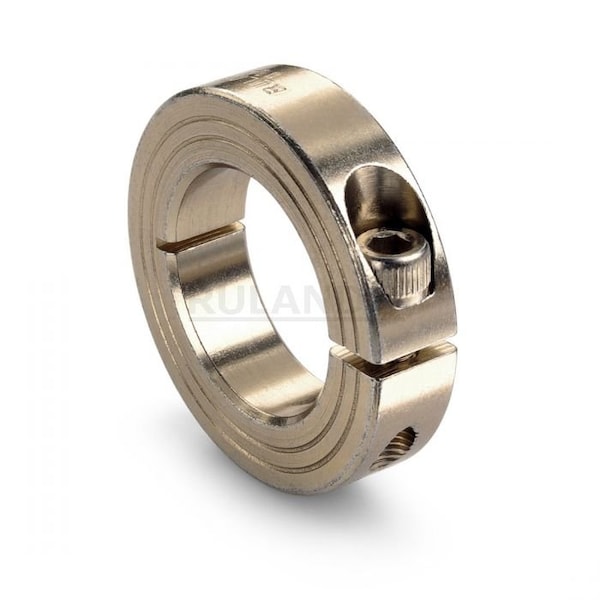

Shaft Collar, Alloy Steel, 16 N-m, 15 mm
Mfr # MCL-32-FZ
Zoro # G408679027
product price:Â
$
14.79
/ea
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M6 x 18
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MCL-32-FZ
- Zoro #
- G408679027
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Screw Seating Torque
- 16 N-m
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Shaft Collar
- Bore Tolerance
- +0.050/+0.012 mm
- System of Measurement
- Metric
- Collar Material
- Carbon Steel
- Included Screws
- Clamp Screw
- Collar Construction
- 1-Piece
- Maximum Operating Temperature
- 350 Degrees F
- Shaft Locking Type
- Clamp-On
- Resistance Properties
- Corrosion-Resistant
- Minimum Operating Temperature
- -40 Degrees F
- Collar Material Grade
- 1215
- Bore Type
- Round
- Screw Material Finish
- Zinc Plated
- Screw Location from Center
- 21.49 mm
- Collar Material Finish
- Zinc Plated
- Shaft Tolerance
- +0.000/-0.013 mm
- Weight
- 0.364 lbs
- Number of Screws
- 1
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 32 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Clearance Diameter 59.2 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
