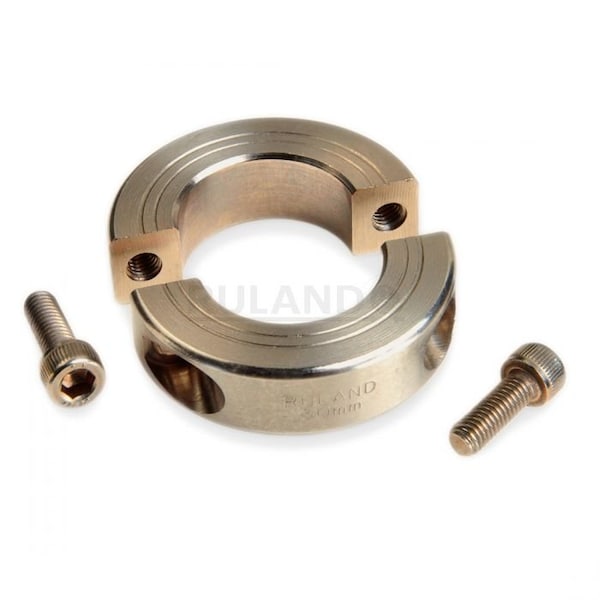

Shaft Collar, Alloy Steel, Metric, -40 Degrees F
Mfr # MSP-28-FZ
Zoro # G508672119
product price:Â
$
17.79
/ea
Key Features
Number of Pieces
2
Collar Style
Clamp
Screw Size
M6 x 16
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MSP-28-FZ
- Zoro #
- G508672119
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 2
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Shaft Collar
- Screw Seating Torque
- 16 N-m
- System of Measurement
- Metric
- Bore Type
- Round
- Shaft Locking Type
- Clamp-On
- Minimum Operating Temperature
- -40 Degrees F
- Collar Construction
- 2-Piece
- Maximum Operating Temperature
- 350 Degrees F
- Collar Material
- Carbon Steel
- Included Screws
- (2) Clamp Screw
- Shaft Tolerance
- +0.000/-0.013 mm
- Resistance Properties
- Corrosion-Resistant
- Collar Material Finish
- Zinc Plated
- Screw Location from Center
- 19 mm
- Collar Material Grade
- 1215
- Screw Material Finish
- Zinc Plated
- Number of Screws
- 2
- Weight
- 0.281 lbs
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 28 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Clearance Diameter 54.7 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
