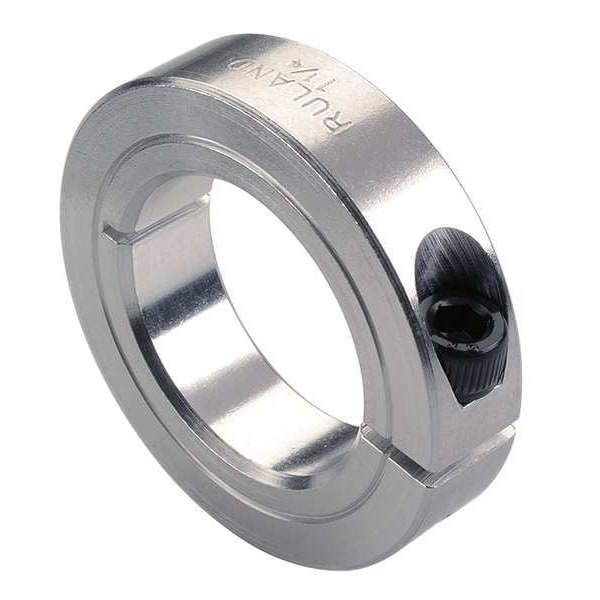

Shaft Collar, Clamp, 1Pc, 35mm, Alum
Mfr # MCL-35-A
Zoro # G3206576
product price:Â
$
17.79
/ea
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M6 x 18
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MCL-35-A
- Zoro #
- G3206576
- UPC #
- 634529012383
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 225 Degrees F
- Screw Material
- Alloy Steel
- Item
- Shaft Collar
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
- Screw Seating Torque
- 16 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Grade
- 2024
- Bore Type
- Round
- Screw Material Finish
- Black Oxide
- Collar Construction
- 1-Piece
- Minimum Operating Temperature
- -40 Degrees C
- Maximum Operating Temperature
- 107 Degrees C
- Screw Location from Center
- 23.24 mm
- Collar Material Finish
- Bright
- Shaft Locking Type
- Clamp-On
- Included Screws
- (1) Hex Socket Cap Screw
- Collar Material
- Aluminum
- Number of Screws
- 1
- Weight
- 0.1476 lbs
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 35 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
