  6. Shaft Collar, Clamp, 2Pc, 2-3/16 In, Steel

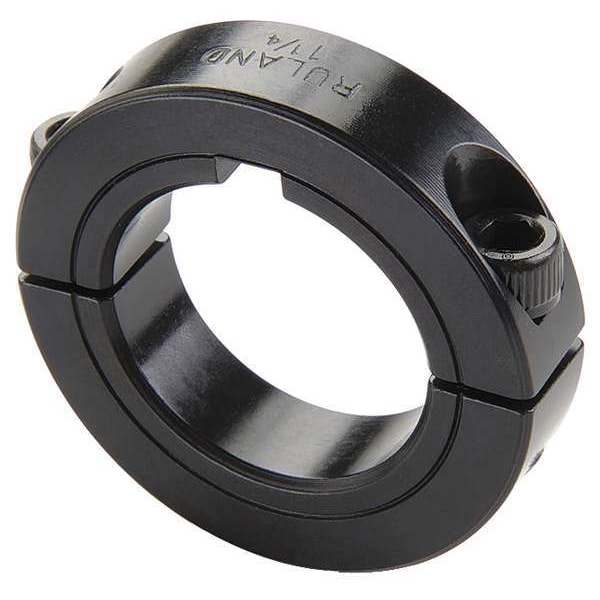

Ruland Shaft Collar, Clamp, 2Pc, 2-3/16 In, Steel SPK-35-F - main

Shaft Collar, Clamp, 2Pc, 2-3/16 In, Steel

  • Mfr # SPK-35-F

  • Zoro # G8260761

product price:  $54.29
/ea

Key Features

Bore Dia.
2.1875 in
Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp Style with Keyway
Outside Dia.
3 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SPK-35-F
Zoro #
G8260761
UPC #
634529078204
Country of Origin
United States

Dimensions

Bore Dia.
2.1875 in
Outside Dia.
3 1/4 in
Dimension Type
Inch
Width
0.750 in
Screw Size
5/16"-24
Clearance Dia.
3.504 in
Width Tolerance
+0.003 in / -0.010 in
Screw Thread Size
5/16"-24
For Shaft Diameter
2 3/16 in
Keyway Width
1/2 in
Collar Outside Diameter
3 1/4 in
Keyway Depth
1/4 in
Collar Width
3/4 in
Clearance Diameter
3.5 in
Bore Diameter
2 3/16 in

Details

Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp Style with Keyway
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Item
Shaft Collar
System of Measurement
Inch
Item - Shaft Collars
Shaft Collar
Shaft Locking Type - Couplings
2 Piece Clamp with Keyway
Material - Collars
Black Oxide 1215 Lead Free Steel
Bore Type - Collars
Plain Bore
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Seating Torque
325 lb-in
Included Screws
(2) Hex Socket Cap Screw
Screw Location from Center
1.38 in
Collar Material Grade
1215
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Bore Type
Round Keyed
Screw Material Finish
Black Oxide
Maximum Operating Temperature
350 Degrees F
Shaft Locking Type
Clamp On
Minimum Operating Temperature
-40 Degrees F
Shaft Tolerance
+0.0000/-0.0005 in
Collar Construction
2-Piece
Weight
0.8505 lbs
Screw Location (R)
1.375 in
Number of Screws
2
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Keyway (K)
1/2 in
Screw Finish
Black Oxide

Description

Shaft Collar, System of Measurement Inch, Bore Type Round Keyed, Bore Diameter 2 3/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 3 1/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 3.5 in, Collar Width 3/4 in, Collar Material Carbon Steel, Keyway Width 1/2 in, Collar Material Grade 1215, Keyway Depth 1/4 in, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
