Shop RULAND

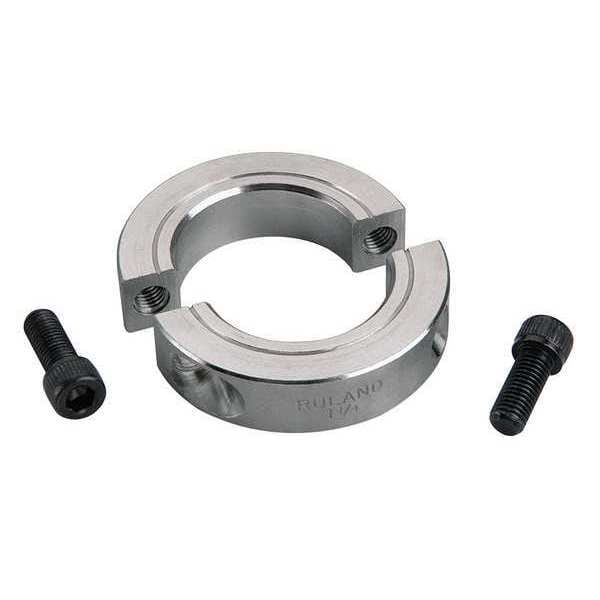

Shaft Collar, Clamp, 2Pc, 32mm, Alum

  • Mfr # MSP-32-A

  • Zoro # G2364196

product price:  $21.99
/ea

Key Features

Number of Pieces
2
Collar Style
Clamp
Screw Size
M6 x 18
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MSP-32-A
Zoro #
G2364196
UPC #
634529015827
Country of Origin
United States

Dimensions

Screw Size
M6 x 18
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
59.2 mm
For Shaft Diameter
32 mm
Screw Thread Size
M6
Bore Diameter
32 mm
Collar Width
15 mm
Collar Outside Diameter
54 mm

Details

Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Item
Shaft Collar
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
Screw Seating Torque
16 N-m
Bore Tolerance
+0.050/+0.012 mm
Screw Location from Center
21.49 mm
Minimum Operating Temperature
-40 Degrees C
Collar Material
2024 Aluminum
Collar Material Finish
Bright
Collar Material Grade
2024
Bore Type
Round
Shaft Locking Type
Clamp-On
Collar Construction
2 Piece Clamp
Shaft Tolerance
+0.000/-0.013 mm
Maximum Operating Temperature
107 Degrees C
Included Screws
(2) Hex Socket Cap Screw
Screw Material Finish
Black Oxide
Weight
0.141 lbs
Number of Screws
2

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 32 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Clearance Diameter 59.2 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
