  6. Shaft Collar, Clamp, 2Pc, 75mm, Steel

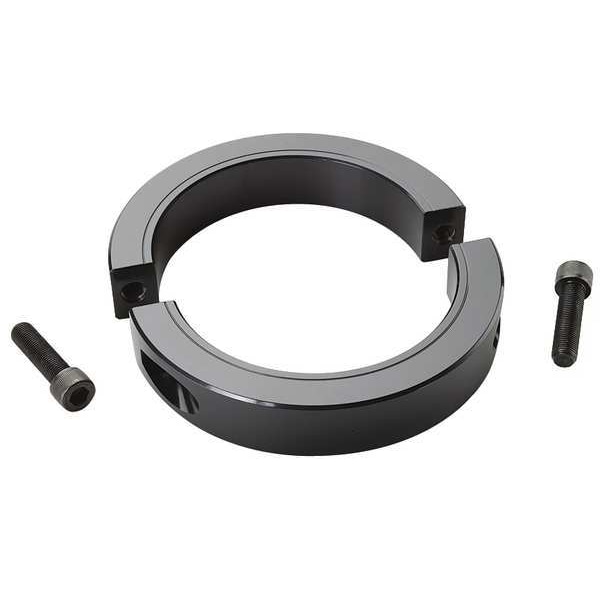

Ruland Shaft Collar, Clamp, 2Pc, 75mm, Steel MSPH-75-F - main

Shaft Collar, Clamp, 2Pc, 75mm, Steel

  • Mfr # MSPH-75-F

  • Zoro # G8249123

product price:  $419.99
/ea
Free Shipping & Returns

Key Features

Material
1215 Bar or A519 Hot Finished 1026 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Outside Dia.
120 mm
Dimension Type
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MSPH-75-F
Zoro #
G8249123
UPC #
634529133149
Country of Origin
United States

Dimensions

Bore Dia.
75 mm
Outside Dia.
120 mm
Dimension Type
Metric
Width
32 mm
Screw Size
M12 x 40
Clearance Dia.
131.7 mm
Width Tolerance
+0.076 mm / -0.254 mm
Screw Thread Size
M12x40
Collar Width
32 mm
For Shaft Diameter
75 mm
Bore Diameter
75 mm
Collar Outside Diameter
120 mm
Clearance Diameter
131.7 mm

Details

Material
1215 Bar or A519 Hot Finished 1026 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Item - Shaft Collars
Shaft Collar
Shaft Locking Type - Couplings
2 Piece Clamp
Material - Collars
Black Oxide 1215 Lead Free Steel
Bore Type - Collars
Plain Bore
System of Measurement
Metric
Item
Shaft Collar
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.102 mm / -0.000 mm
Screw Seating Torque
135 Nm
Bore Type
Round
Collar Construction
2-Piece
Included Screws
(2) Hex Socket Cap Screw
Screw Material Finish
Black Oxide
Shaft Tolerance
+0.000/-0.025 mm
Minimum Operating Temperature
-40 Degrees C
Shaft Locking Type
Clamp On
Collar Material Grade
1215
Collar Material
Carbon Steel
Collar Material Finish
Black Oxide
Maximum Operating Temperature
176 Degrees C
Screw Location from Center
51.5 mm
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Weight
3.5743 lbs
Screw Location (R)
51.50 mm
Recommended Shaft Tolerance
+0.000 mm / -0.025 mm
Number of Screws
2
Screw Finish
Black Oxide

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 75 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 120 mm, Inside Height to Flat Not Applicable, Clearance Diameter 131.7 mm, Collar Width 32 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
