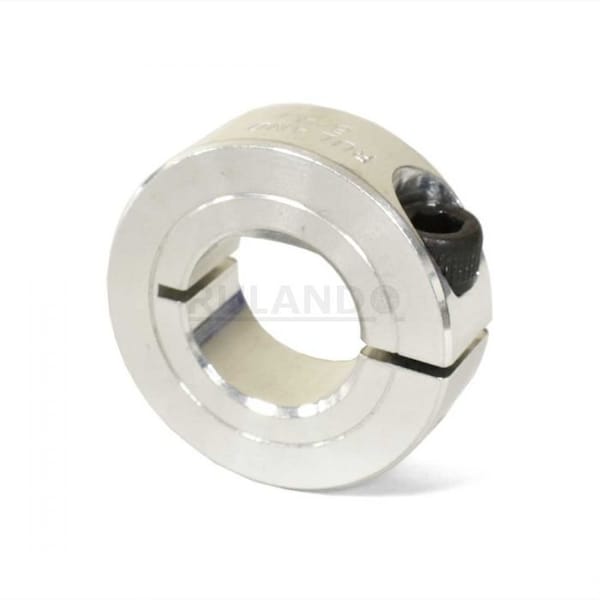

Ruland SHAFT COLLAR D-BORE CLD-8-A - main

SHAFT COLLAR D-BORE

  • Mfr # CLD-8-A

  • Zoro # G208678954

product price:  $21.69
/ea

Key Features

Bore Dia.
0.5000 in
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
1 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CLD-8-A
Zoro #
G208678954
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.5000 in
Outside Dia.
1 1/8 in
Width
0.406 in
Screw Size
#8-32
Clearance Dia.
1.281 in
Width Tolerance
+0.003/-0.010 in
Clearance Diameter
1.28 in
Screw Thread Size
#8-32
Collar Outside Diameter
1 1/8 in
Collar Width
13/32 in
For Shaft Diameter
1/2 in
Bore Diameter
1/2 in
Inside Height to Flat
0.47 in

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Distance Across Flats
7/16 in
Screw Seating Torque
49 lb-in
Standards
ISO 9001:2015 Certified
Item
D-Bore Shaft Collar
Bore Tolerance
+0.0020 in / +0.0005 in
System of Measurement
Inch
Screw Material Finish
Black Oxide
Screw Location from Center
0.41 in
Collar Material
Aluminum
Collar Construction
1-Piece
Shaft Tolerance
+0.0000/-0.0005 in
Minimum Operating Temperature
-40 Degrees F
Bore Type
D
Collar Material Finish
Bright
Maximum Operating Temperature
225 Degrees F
Collar Material Grade
2024
Included Screws
Clamp Screw
Shaft Locking Type
Clamp On
Screw Finish
Black Oxide
Flat (F)
0.466 in
Finish
Bright, No Plating
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Number of Screws
1
Weight
0.033202 lbs
Screw Location (R)
0.406 in

Description

D-Bore Shaft Collar, System of Measurement Inch, Bore Type D, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 1/8 in, Inside Height to Flat 0.47 in, Clearance Diameter 1.28 in, Collar Width 13/32 in, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
