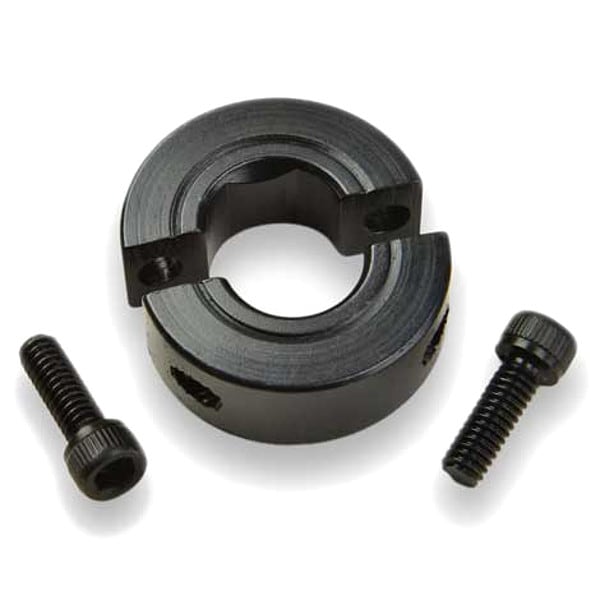

Ruland SHAFT COLLAR D-BORE MSPD-10-F - main

SHAFT COLLAR D-BORE

  • Mfr # MSPD-10-F

  • Zoro # G608673832

product price:  $23.79
/ea

Key Features

Bore Dia.
10 mm
Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Outside Dia.
24 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MSPD-10-F
Zoro #
G608673832
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
10 mm
Outside Dia.
24 mm
Width
9 mm
Screw Size
M3 x 10
Clearance Dia.
26.3 mm
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
10 mm
Clearance Diameter
26.3 mm
Inside Height to Flat
0.37 mm
Collar Width
9 mm
For Shaft Diameter
10 mm
Screw Thread Size
M3x10
Screw Length
10 mm
Collar Outside Diameter
24 mm

Details

Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
System of Measurement
Metric
Bore Tolerance
+0.050 mm / +0.012 mm
Item
D-Bore Shaft Collar
Screw Seating Torque
2.1 Nm
Standards
ISO 9001:2015 Certified
Distance Across Flats
3/8 mm
Included Screws
(2) Clamp Screw
Screw Location from Center
8.51 mm
Screw Material Finish
Black Oxide
Minimum Operating Temperature
-40 Degrees F
Shaft Locking Type
Clamp On
Collar Material
Carbon Steel
Bore Type
D
Shaft Tolerance
+0.000/-0.013 mm
Collar Material Grade
1215
Collar Construction
2-Piece
Maximum Operating Temperature
350 Degrees F
Resistance Properties
Corrosion Resistant
Collar Material Finish
Black Oxide
Number of Screws
2
Screw Location (R)
8.51 mm
Screw Finish
Black Oxide
Flat (F)
0.37 mm
Weight
0.051035 lbs
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm

Description

D-Bore Shaft Collar, System of Measurement Metric, Bore Type D, Bore Diameter 10 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat 0.37 mm, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
