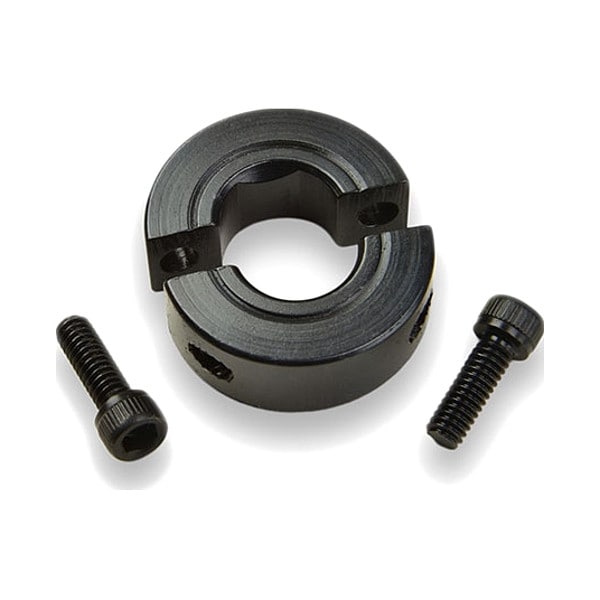

Ruland SHAFT COLLAR D-BORE SPD-10-F - main

SHAFT COLLAR D-BORE

  • Mfr # SPD-10-F

  • Zoro # G408673797

product price:  $21.69
/ea

Key Features

Bore Dia.
0.6250 in
Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Outside Dia.
1 5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SPD-10-F
Zoro #
G408673797
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.6250 in
Outside Dia.
1 5/16 in
Width
0.437 in
Screw Size
#10-32
Clearance Dia.
1.500 in
Width Tolerance
+0.003/-0.010 in
Screw Thread Size
#10-32
Collar Outside Diameter
1 5/16 in
Inside Height to Flat
0.59 in
Bore Diameter
5/8 in
Clearance Diameter
1.5 in
Collar Width
7/16 in
For Shaft Diameter
5/8 in

Details

Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.0020 in / +0.0005 in
Item
D-Bore Shaft Collar
System of Measurement
Inch
Screw Seating Torque
76 lb-in
Shaft Locking Type
Clamp On
Maximum Operating Temperature
350 Degrees F
Shaft Tolerance
+0.0000/-0.0005 in
Collar Construction
2-Piece
Bore Type
D
Resistance Properties
Corrosion Resistant
Minimum Operating Temperature
-40 Degrees F
Collar Material
Carbon Steel
Collar Material Finish
Black Oxide
Screw Material Finish
Black Oxide
Collar Material Grade
1215
Screw Location from Center
0.48 in
Included Screws
(2) Clamp Screw
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Location (R)
0.479 in
Flat (F)
0.585 in
Number of Screws
2
Screw Finish
Black Oxide
Weight
0.114015 lbs

Description

D-Bore Shaft Collar, System of Measurement Inch, Bore Type D, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 5/16 in, Inside Height to Flat 0.59 in, Clearance Diameter 1.5 in, Collar Width 7/16 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
