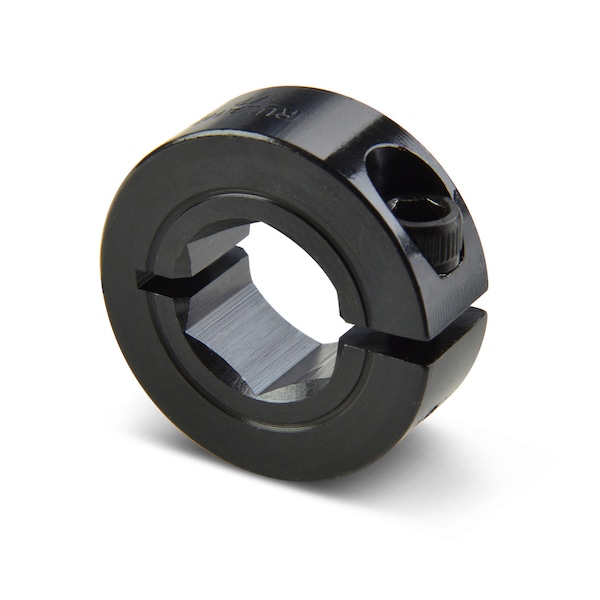

SHAFT COLLAR HEX BORE

  • Mfr # CL-8HX-F

  • Zoro # G3400180

product price:  $14.15
/ea

Key Features

Bore Dia.
0.5000 in
Material
Black Oxide Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
1 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CL-8HX-F
Zoro #
G3400180
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.5000 in
Outside Dia.
1 1/8 in
Dimension Type
Inch
Width
0.406 in
Screw Size
#8-32
Clearance Dia.
1.281 in
Width Tolerance
+0.003/-0.010 in
Bore Width
3/8 in
Collar Width
13/32 in
Bore Diameter
1/2 in
For Shaft Diameter
1/2 in
Screw Thread Size
#8-32
Collar Outside Diameter
1 1/8 in
Clearance Diameter
1.28 in

Details

Material
Black Oxide Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40°F to 350°F (-40°C to 176°C)
Screw Material
Alloy Steel
Weight
0.0824 lbs
Standards
ANSI, Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Hex Bore Shaft Collar
System of Measurement
Inch
Distance Across Flats
1/2 in
Type
One-Piece
Number of Screws
1 ea
Bore Tolerance
+0.0020/+0.0005 in
Screw Finish
Black Oxide
Style
Hex
Screw Location (R)
0.406 in
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Seating Torque
49 lb-in
Included Screws
Clamp Screw
Resistance Properties
Corrosion-Resistant
Collar Material Grade
1215
Bore Type
Hex
Screw Location from Center
0.41 in
Collar Material Finish
Black Oxide
Maximum Operating Temperature
350 Degrees F
Screw Material Finish
Black Oxide
Minimum Operating Temperature
-40 Degrees F
Collar Construction
1-Piece
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material
Carbon Steel
Shaft Locking Type
Clamp-On
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried

Description

Hex Bore Shaft Collar, System of Measurement Inch, Bore Type Hex, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 1/8 in, Inside Height to Flat Not Applicable, Clearance Diameter 1.28 in, Collar Width 13/32 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
