Shop RULAND

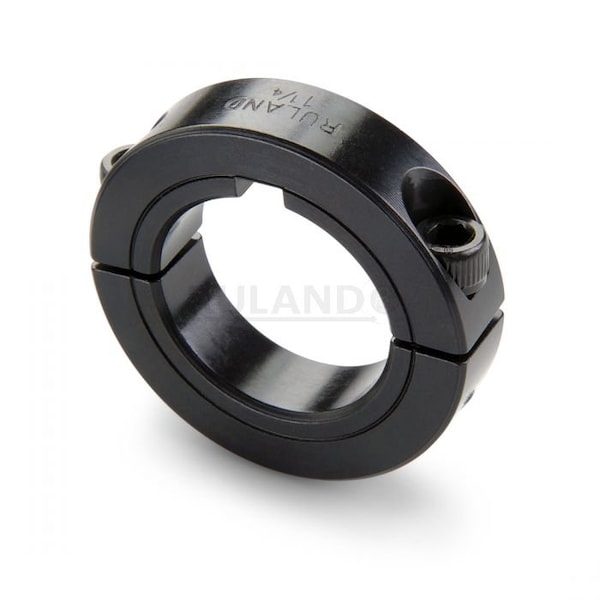

SHAFT COLLAR KEYED

  • Mfr # MSPK-40-F

  • Zoro # G608675058

product price:  $28.79
/ea

Key Features

Number of Pieces
2
Collar Style
Clamp Style with Keyway
Screw Size
M6 x 18
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MSPK-40-F
Zoro #
G608675058
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M6 x 18
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
40 mm
Clearance Diameter
65.6 mm
Collar Width
15 mm
For Shaft Diameter
40 mm
Collar Outside Diameter
60 mm
Screw Length
18 mm
Screw Thread Size
M6x18
Keyway Depth
3.5 mm
Keyway Width
12 mm

Details

Number of Pieces
2
Collar Style
Clamp Style with Keyway
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Item
Keyed Shaft Collar
Screw Seating Torque
16 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Maximum Operating Temperature
350 Degrees F
Included Screws
(2) Clamp Screw
Collar Construction
2-Piece
Collar Material
Carbon Steel
Resistance Properties
Corrosion-Resistant
Bore Type
Round Keyed
Shaft Locking Type
Clamp-On
Screw Material Finish
Black Oxide
Collar Material Grade
1215
Screw Location from Center
24.99 mm
Minimum Operating Temperature
-40 Degrees F
Shaft Tolerance
+0.000/-0.013 mm
Collar Material Finish
Black Oxide
Weight
0.3607 lbs
Number of Screws
2

Description

Keyed Shaft Collar, System of Measurement Metric, Bore Type Round Keyed, Bore Diameter 40 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 65.6 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width 12 mm, Collar Material Grade 1215, Keyway Depth 3.5 mm, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
