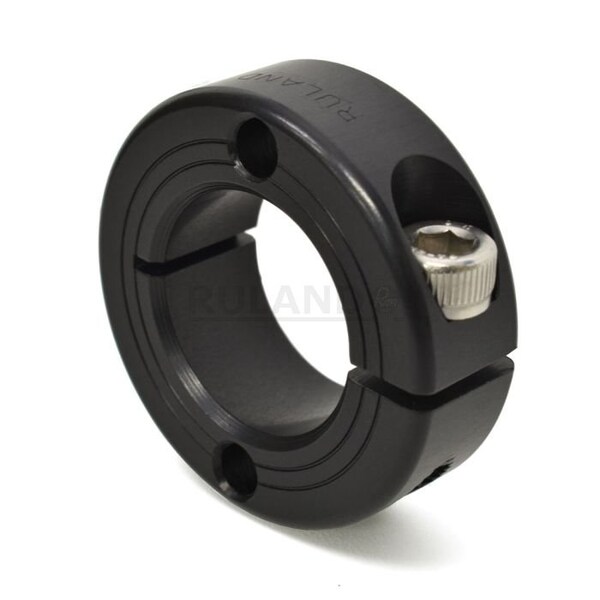

SHAFT COLLAR MOUNTABLE

Mfr # FHD-MCL-12E-AN
Zoro # G908679022

27.79

Key Features

Screw Material

Stainless Steel

Bore Tolerance

+0.0020/+0.0005 in

Width Tolerance

+0.076/-0.254 mm

Screw Seating Torque

9.6 N-m

Standards

Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: FHD-MCL-12E-AN
Zoro #: G908679022
UPC #: -
Country of Origin: United States

Dimensions

Width Tolerance: +0.076/-0.254 mm
Collar Width: 15 mm
Clearance Diameter: 47.4 mm
Bore Diameter: 3/4 in
Collar Outside Diameter: 40 mm
Mount Hole Size: 6.35 mm
Screw Thread Size: M6
For Shaft Diameter: 3/4 in
Screw Size: M6

Details

Screw Material: Stainless Steel
Bore Tolerance: +0.0020/+0.0005 in
Item: Mountable Shaft Collar
Screw Seating Torque: 9.6 N-m
Standards: Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement: Metric with Inch Bore
Shaft Locking Type: Clamp-On
Collar Construction: 1-Piece
Shaft Tolerance: +0.0000/-0.0005 in
Collar Material: Aluminum
Minimum Operating Temperature: -40 Degrees C
Resistance Properties: Corrosion-Resistant
Screw Material Grade: 18-8 300 Series
Screw Location from Center: 14.73 mm
Collar Material Finish: Anodized
Included Screws: Clamp Screw
Collar Material Grade: 2024
Component Mount Type: Face Mount Holes
Bore Type: Round
Screw Material Finish: Bright
Maximum Operating Temperature: 93 Degrees C
Operating Temp. Range: -40 Degrees to 200 Degrees F
Weight: 0.086805 lbs
Number of Screws: 1
Number of Pieces: 1
Collar Style: Clamp

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
