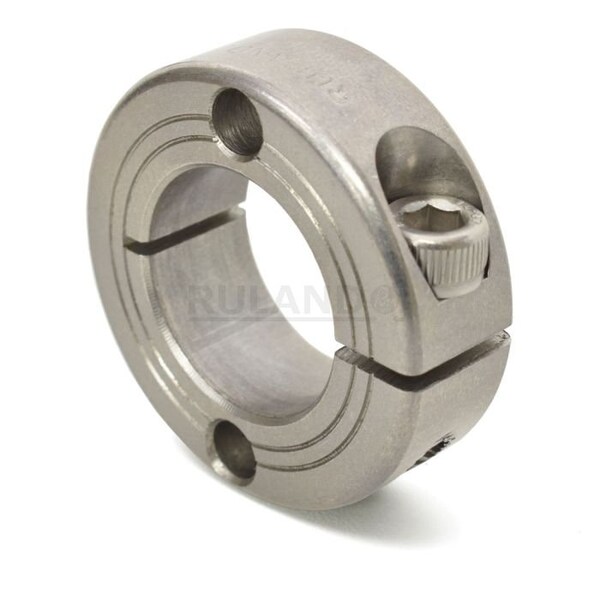

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-30-SS - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-30-SS

  • Zoro # G008673852

product price:  $36.19
/ea

Key Features

Bore Dia.
30 mm
Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
54 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-30-SS
Zoro #
G008673852
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
30 mm
Outside Dia.
54 mm
Width
15 mm
Screw Size
M6 x 18
Clearance Dia.
59.2 mm
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
54 mm
Screw Thread Size
M6x18
Clearance Diameter
59.2 mm
Collar Width
15 mm
Screw Length
18 mm
Mount Hole Size
6.35 mm
Bore Diameter
30 mm
For Shaft Diameter
30 mm

Details

Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
18-8 300 Series Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Screw Seating Torque
9.6 N-m
Item
Mountable Shaft Collar
Resistance Properties
Corrosion Resistant
Minimum Operating Temperature
-40 Degrees C
Collar Material
Stainless Steel
Included Screws
Clamp Screw
Screw Location from Center
21.49 mm
Shaft Locking Type
Clamp On
Component Mount Type
Face Mount Holes
Collar Material Finish
Bright
Collar Construction
1-Piece
Shaft Tolerance
+0.000/-0.013 mm
Bore Type
Round
Screw Material Grade
18-8 300 Series
Screw Material Finish
Bright
Collar Material Grade
303
Maximum Operating Temperature
176 Degrees C
Number of Screws
1
Screw Finish
Bright
Threaded Mounting Hole
6.35 mm
Weight
0.38242 lbs
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Location (R)
21.49 mm
Finish
Bright, No Plating

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 30 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 54 mm, Inside Height to Flat Not Applicable, Clearance Diameter 59.2 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
