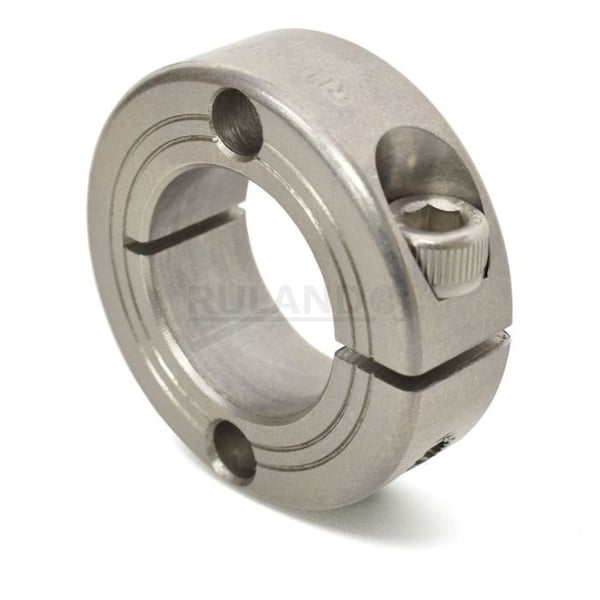

SHAFT COLLAR MOUNTABLE
- Mfr # FHD-MCL-35-SS
- Zoro # G508673680
product price:Â
$
42.79
/ea
Key Features
Screw Material
Stainless Steel
Screw Seating Torque
9.6 N-m
Width Tolerance
+0.076/-0.254 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHD-MCL-35-SS
- Zoro #
- G508673680
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Screw Seating Torque
- 9.6 N-m
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Mountable Shaft Collar
- System of Measurement
- Metric
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Material Finish
- Bright
- Shaft Locking Type
- Clamp-On
- Collar Material Finish
- Bright
- Resistance Properties
- Corrosion-Resistant
- Screw Material Grade
- 18-8 300 Series
- Bore Type
- Round
- Collar Material
- Stainless Steel
- Maximum Operating Temperature
- 176 Degrees C
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Grade
- 303
- Collar Construction
- 1-Piece
- Included Screws
- Clamp Screw
- Component Mount Type
- Face Mount Holes
- Screw Location from Center
- 23.24 mm
- Minimum Operating Temperature
- -40 Degrees C
Description
Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 35 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
