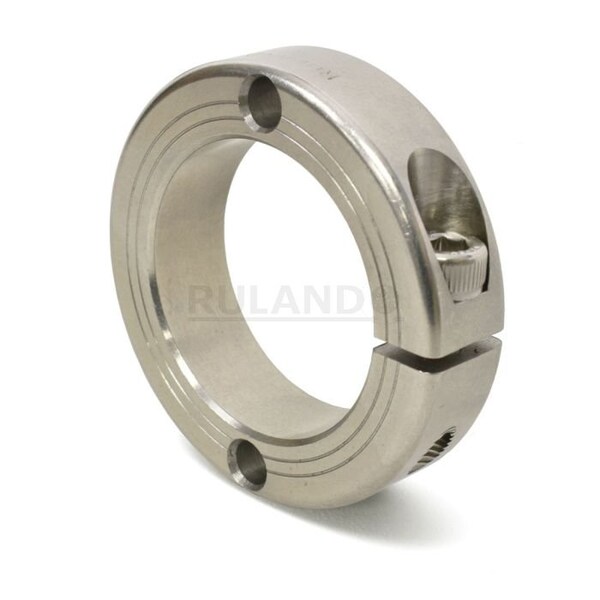

SHAFT COLLAR MOUNTABLE
- Mfr # FHD-MCL-48-SS
- Zoro # G108673769
product price:Â
$
153.99
/ea
Free Shipping & Returns
Key Features
Screw Material
Stainless Steel
Screw Seating Torque
23 N-m
Width Tolerance
+0.076/-0.254 mm
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FHD-MCL-48-SS
- Zoro #
- G108673769
- UPC #
- -
- Country of Origin
- United States
- Screw Material
- Stainless Steel
- Item
- Mountable Shaft Collar
- Screw Seating Torque
- 23 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- System of Measurement
- Metric
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Minimum Operating Temperature
- -40 Degrees C
- Shaft Tolerance
- +0.000/-0.013 mm
- Screw Location from Center
- 32 mm
- Component Mount Type
- Face Mount Holes
- Shaft Locking Type
- Clamp-On
- Collar Construction
- 1-Piece
- Collar Material Grade
- 303
- Collar Material Finish
- Bright
- Screw Material Finish
- Bright
- Collar Material
- Stainless Steel
- Maximum Operating Temperature
- 176 Degrees C
- Resistance Properties
- Corrosion-Resistant
- Screw Material Grade
- 18-8 300 Series
- Bore Type
- Round
- Included Screws
- Clamp Screw
Description
Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 48 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Clearance Diameter 84.7 mm, Collar Width 19 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
