Shop RULAND

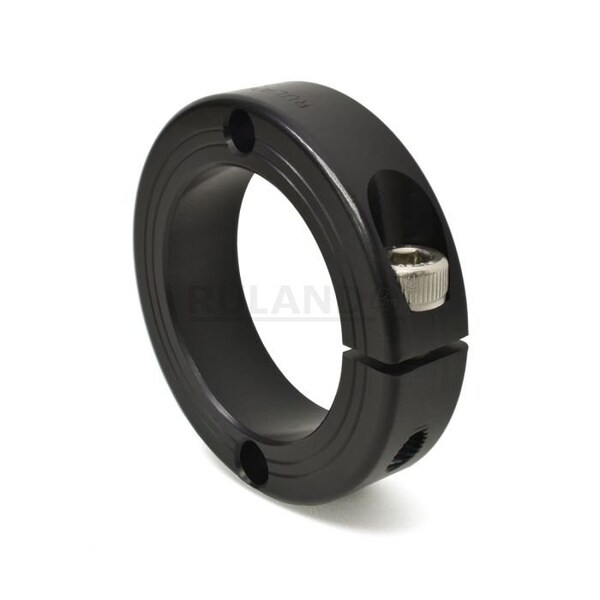

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-50-AN

  • Zoro # G108673783

product price:
$
92.79
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M8 x 25
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FHD-MCL-50-AN
Zoro #
G108673783
UPC #
-
Country of Origin
United States
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Item
Mountable Shaft Collar
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Screw Seating Torque
23 N-m
Shaft Locking Type
Clamp-On
Collar Material Finish
Anodized
Included Screws
Clamp Screw
Resistance Properties
Corrosion-Resistant
Collar Construction
1-Piece
Screw Material Finish
Bright
Maximum Operating Temperature
93 Degrees C
Collar Material
Aluminum
Minimum Operating Temperature
-40 Degrees C
Collar Material Grade
2024
Component Mount Type
Face Mount Holes
Bore Type
Round
Screw Material Grade
18-8 300 Series
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
32 mm
Weight
0.315838 lbs
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 50 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 78 mm, Inside Height to Flat Not Applicable, Clearance Diameter 84.7 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
