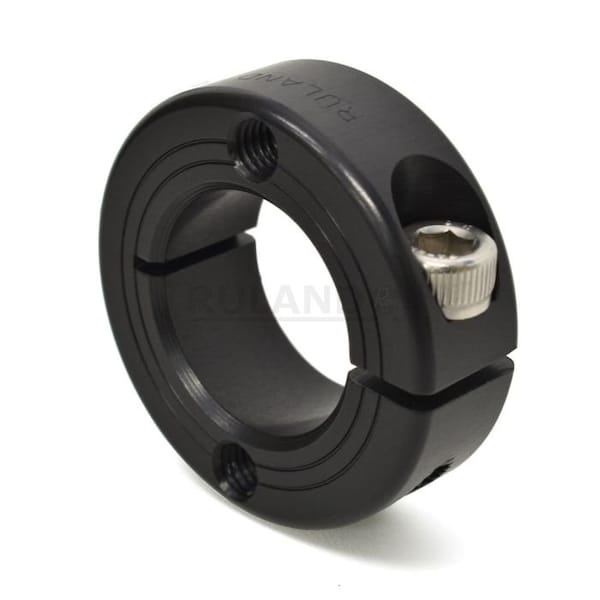

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-10-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-10-AN

  • Zoro # G808673847

product price:  $22.79
/ea

Key Features

Bore Dia.
10 mm
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
24 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-10-AN
Zoro #
G808673847
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
10 mm
Outside Dia.
24 mm
Width
9 mm
Screw Size
M3 x 10
Clearance Dia.
26.3 mm
Width Tolerance
+0.076/-0.254 mm
Screw Length
10 mm
Mount Hole Thread Size
M3
Collar Width
9 mm
Bore Diameter
10 mm
Screw Thread Size
M3x10
For Shaft Diameter
10 mm
Clearance Diameter
26.3 mm
Collar Outside Diameter
24 mm

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Mountable Shaft Collar
System of Measurement
Metric
Screw Seating Torque
1.1 N-m
Bore Tolerance
+0.050/+0.012 mm
Collar Material
Aluminum
Collar Construction
1-Piece
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Face Mount Holes
Screw Material Grade
18-8 300 Series
Collar Material Finish
Anodized
Screw Location from Center
8.51 mm
Resistance Properties
Corrosion Resistant
Bore Type
Round
Screw Material Finish
Bright
Collar Material Grade
2024
Maximum Operating Temperature
93 Degrees C
Included Screws
Clamp Screw
Minimum Operating Temperature
-40 Degrees C
Shaft Locking Type
Clamp On
Screw Finish
Bright
Finish
Sulfuric Anodized and Black Anodize
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Weight
0.019566 lbs
Number of Screws
1
Threaded Mounting Hole
M3
Screw Location (R)
8.51 mm

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 10 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
