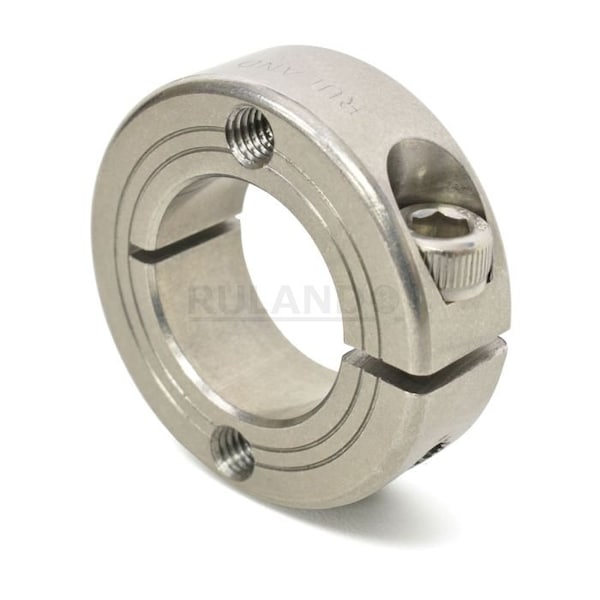

SHAFT COLLAR MOUNTABLE
Mfr # FHT-MCL-10E-SS
Zoro # G808673823
product price: $20.89
/eaKey Features
Screw Material
Stainless Steel
System of Measurement
Metric with Inch Bore
Screw Seating Torque
5.4 N-m
Width Tolerance
+0.076/-0.254 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FHT-MCL-10E-SS
Zoro #
G808673823
UPC #
-
Country of Origin
United States
Dimensions
Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
34 mm
Collar Width
13 mm
Clearance Diameter
39.3 mm
Screw Thread Size
M5
For Shaft Diameter
5/8 in
Mount Hole Thread Size
M5
Bore Diameter
5/8 in
Description
Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
