Shop RULAND

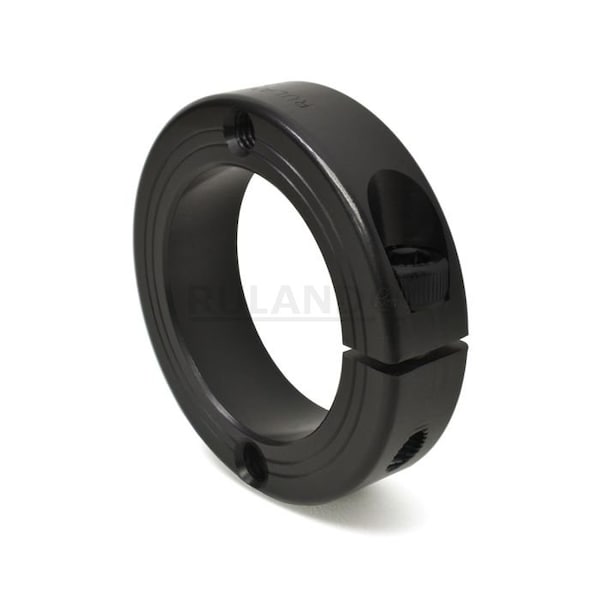

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-40-F

  • Zoro # G008675702

product price:  $18.15
/ea

Key Features

Bore Dia.
40 mm
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
60 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-40-F
Zoro #
G008675702
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
40 mm
Outside Dia.
60 mm
Width
15 mm
Screw Size
M6 x 18
Clearance Dia.
65.6 mm
Width Tolerance
+0.076/-0.254 mm
For Shaft Diameter
40 mm
Mount Hole Thread Size
M6
Screw Length
18 mm
Clearance Diameter
65.6 mm
Screw Thread Size
M6x18
Bore Diameter
40 mm
Collar Width
15 mm
Collar Outside Diameter
60 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Item
Mountable Shaft Collar
Screw Seating Torque
16 N-m
System of Measurement
Metric
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
176 Degrees C
Shaft Locking Type
Clamp-On
Screw Location from Center
24.99 mm
Included Screws
Clamp Screw
Component Mount Type
Face Mount Holes
Shaft Tolerance
+0.000/-0.013 mm
Resistance Properties
Corrosion-Resistant
Collar Material Grade
1215
Collar Material Finish
Black Oxide
Collar Material
Carbon Steel
Screw Material Finish
Black Oxide
Collar Construction
1-Piece
Bore Type
Round
Threaded Mounting Hole
M6
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Location (R)
24.99 mm
Screw Finish
Black Oxide
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Weight
0.37661 lbs
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 40 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 65.6 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
