Shop RULAND

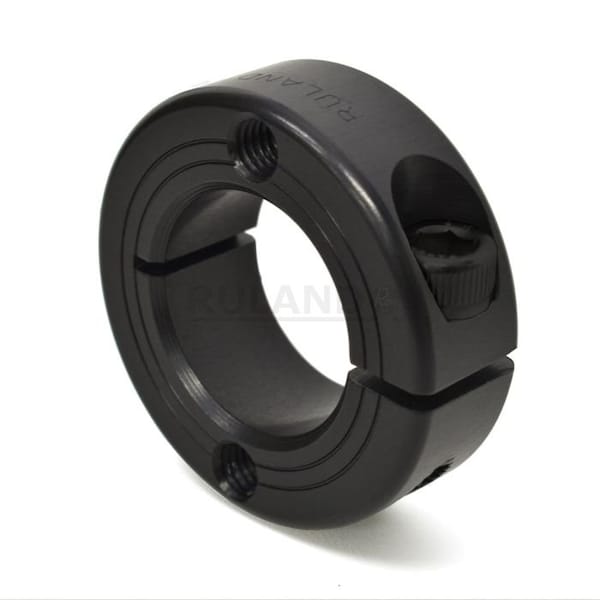

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-14-F

  • Zoro # G908675161

product price:  $10.79
/ea

Key Features

Screw Material
Alloy Steel
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
4.6 N-m
Bore Tolerance
+0.050/+0.012 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHT-MCL-14-F
Zoro #
G908675161
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Collar Outside Diameter
30 mm
Mount Hole Thread Size
M4
Screw Thread Size
M4x14
Collar Width
11 mm
Clearance Diameter
33.7 mm
Screw Length
14 mm
For Shaft Diameter
14 mm
Bore Diameter
14 mm
Screw Size
M4 x 14

Details

Screw Material
Alloy Steel
System of Measurement
Metric
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
4.6 N-m
Bore Tolerance
+0.050/+0.012 mm
Item
Mountable Shaft Collar
Collar Material Grade
1215
Shaft Locking Type
Clamp-On
Maximum Operating Temperature
176 Degrees C
Resistance Properties
Corrosion-Resistant
Collar Construction
1-Piece
Bore Type
Round
Collar Material
Carbon Steel
Minimum Operating Temperature
-40 Degrees C
Collar Material Finish
Black Oxide
Screw Material Finish
Black Oxide
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
11 mm
Included Screws
Clamp Screw
Component Mount Type
Face Mount Holes
Weight
0.09418 lbs
Operating Temp. Range
-40 Degrees to 350 Degrees F
Number of Screws
1
Number of Pieces
1
Collar Style
Clamp

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 14 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Clearance Diameter 33.7 mm, Collar Width 11 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
