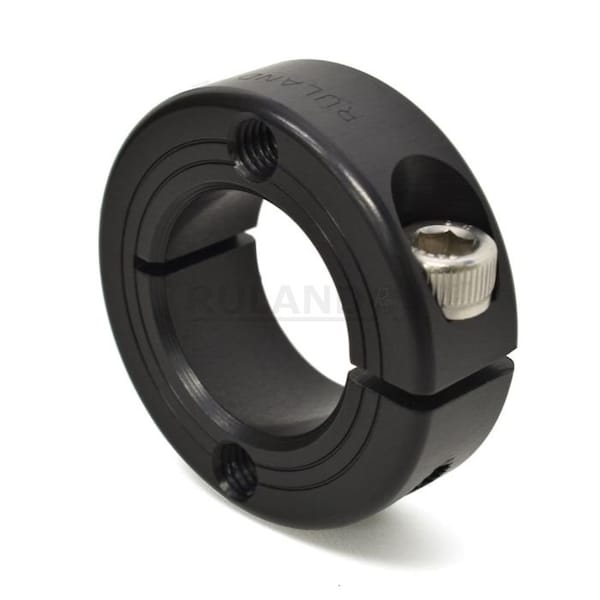

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-20-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-20-AN

  • Zoro # G508675073

product price:  $23.79
/ea

Key Features

Bore Dia.
20 mm
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHT-MCL-20-AN
Zoro #
G508675073
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
20 mm
Outside Dia.
40 mm
Width
15 mm
Screw Size
M6 x 16
Clearance Dia.
47.4 mm
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
20 mm
Clearance Diameter
47.4 mm
For Shaft Diameter
20 mm
Screw Length
16 mm
Collar Outside Diameter
40 mm
Mount Hole Thread Size
M6
Collar Width
15 mm
Screw Thread Size
M6x16

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.050/+0.012 mm
System of Measurement
Metric
Item
Mountable Shaft Collar
Screw Seating Torque
9.6 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Collar Material Grade
2024
Bore Type
Round
Resistance Properties
Corrosion Resistant
Collar Material
Aluminum
Shaft Tolerance
+0.000/-0.013 mm
Collar Material Finish
Anodized
Screw Material Finish
Bright
Screw Material Grade
18-8 300 Series
Minimum Operating Temperature
-40 Degrees C
Included Screws
Clamp Screw
Collar Construction
1-Piece
Component Mount Type
Face Mount Holes
Screw Location from Center
14.73 mm
Shaft Locking Type
Clamp On
Maximum Operating Temperature
93 Degrees C
Finish
Sulfuric Anodized and Black Anodize
Screw Location (R)
14.73 mm
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Weight
0.086345 lbs
Threaded Mounting Hole
M6
Screw Finish
Bright
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
