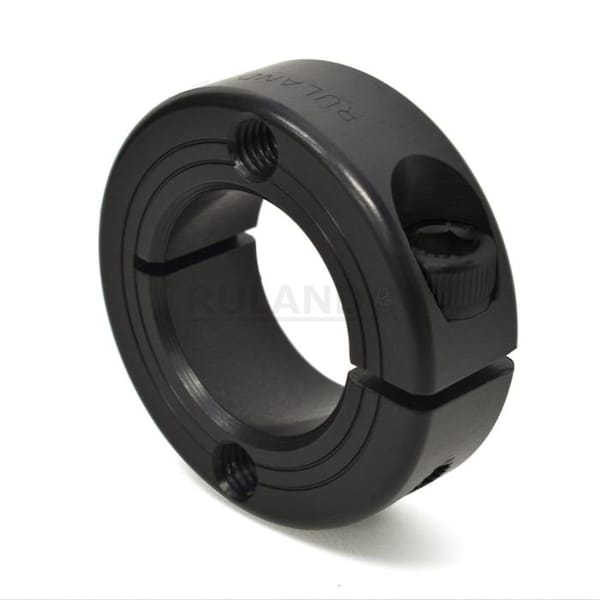

Ruland SHAFT COLLAR MOUNTABLE FHT-MCL-6E-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHT-MCL-6E-F

  • Zoro # G008675726

product price:  $8.59
/ea

Key Features

Bore Dia.
0.3750 in
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
24 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHT-MCL-6E-F
Zoro #
G008675726
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.3750 in
Outside Dia.
24 mm
Width
9 mm
Screw Size
M3
Clearance Dia.
26.3 mm
Width Tolerance
+0.076 mm / -0.254 mm
Collar Outside Diameter
24 mm
Bore Diameter
3/8 in
Collar Width
9 mm
For Shaft Diameter
3/8 in
Mount Hole Thread Size
M3
Screw Thread Size
M3
Clearance Diameter
26.3 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Screw Seating Torque
2.1 Nm
Bore Tolerance
+0.0020 in / +0.0005 in
Standards
ISO 9001:2015 Certified
Item
Mountable Shaft Collar
System of Measurement
Metric with Inch Bore
Collar Material Grade
1215
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Minimum Operating Temperature
-40 Degrees C
Shaft Tolerance
+0.0000/-0.0005 in
Component Mount Type
Face Mount Holes
Screw Material Finish
Black Oxide
Collar Material
Carbon Steel
Collar Material Finish
Black Oxide
Screw Location from Center
8.51 mm
Maximum Operating Temperature
176 Degrees C
Collar Construction
1-Piece
Bore Type
Round
Included Screws
Clamp Screw
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Number of Screws
1
Screw Location (R)
8.51 mm
Threaded Mounting Hole
M3
Screw Finish
Black Oxide

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
