  11. Pneumatic Vibrator, 1050 lb, 3600vpm, 80psi
Shop All Vibrators
Vibco

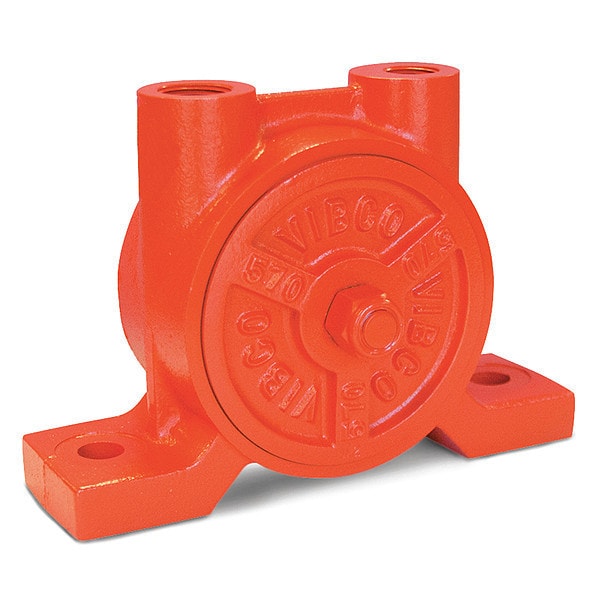

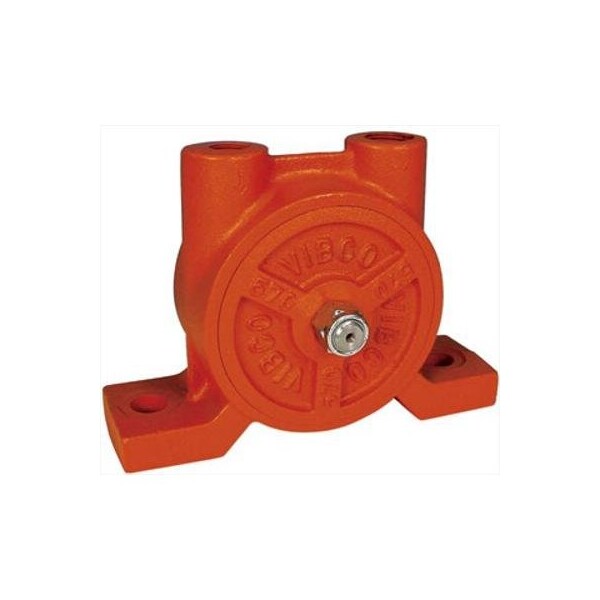

Pneumatic Vibrator, 1050 lb, 3600vpm, 80psi

product price: $665.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Turbine
  • Force Rating 1050 lb.
  • CFM @ 80 PSI 26
  • Speed @ 60 psi 3600 VPM
  • Overall Length 10-3/16"
See all product information

Product Information

  • Brand Vibco
  • MFR # BVS-570
  • Zoro # G3290122
  • UPC #
    817457020259
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 10-3/16"
Overall Width 5-7/16"
Overall Height 7-1/4"
Inlet Connection Size 3/4 in
Outlet Connection Size 1 in
Mount Hole Size 19
Mount Hole Center-to-Center Length 203 mm

Details

Vibrator Type Turbine
Item Pneumatic Vibrator
Force Rating 1050 lb.
CFM @ 80 PSI 26
Speed @ 60 psi 3600 VPM
Speed @ 80 psi 4000 VPM
dB @ 80 psi 83
Bin Weight Capacity 10,500 lb.
Inlet Port 3/4" NPT
Outlet Port 1" NPT
Bearing Type Oversized
Muffler 6F601
Mounting Plate Sold Separately
Duty Continuous
Max. Pressure 80 psi
Standards CE Certified, ATEX Certified
Housing Material Cast iron
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries, Where Exhausted Air Must be Remotely Discharged Using a Threaded Exhaust Port
Max. Temp. 350 Degrees F
CFM @ 60 psi 21
Maximum Inlet Pressure 80 psi
Maximum Bin Weight Capacity 10,500 lb
Series BVS
Outlet Connection Type NPT
Pneumatic Vibrator Type Turbine
Air Flow Rate 21 cfm @ 60 psi, 26 cfm @ 80 psi
Weight 24.5 lb
Maximum Force 1,050 lbf
Compatible Muffler Grainger Part Number 6F601
Maximum Vibration Speed 4,000 vpm
Duty Cycle Continuous
Inlet Connection Type NPT
Force @ 80 psi 1,050 lbf
Maximum Operating Temperature 350 Degrees F
Force @ 60 psi 850 lbf
Mount Plate Included No
Vibration Speed @ 60 psi 3,600 vpm
Vibration Speeds @ PSI 3,600 vpm @ 60 psi, 4,000 vpm @ 80 psi
Force @ PSI 1,050 lbf @ 80 psi, 850 lbf @ 60 psi
Mount Plate Required Yes
Sound Level 83 dBA
Vibration Speed @ 80 psi 4,000 vpm

Description

Pneumatic Vibrator, Housing Material Cast Iron, Outlet Connection Size 1 in, Outlet Connection Type NPT, Air Flow Rate 21 cfm @ 60 psi, 26 cfm @ 80 psi, Maximum Force 1,050 lbf, Inlet Connection Size 3/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 4,000 vpm, Maximum Bin Weight Capacity 10,500 lb, Overall Height 7.24 in, Overall Length 10.2 in, Overall Width 5.43 in, Sound Level 83 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
